HDP6 Series -

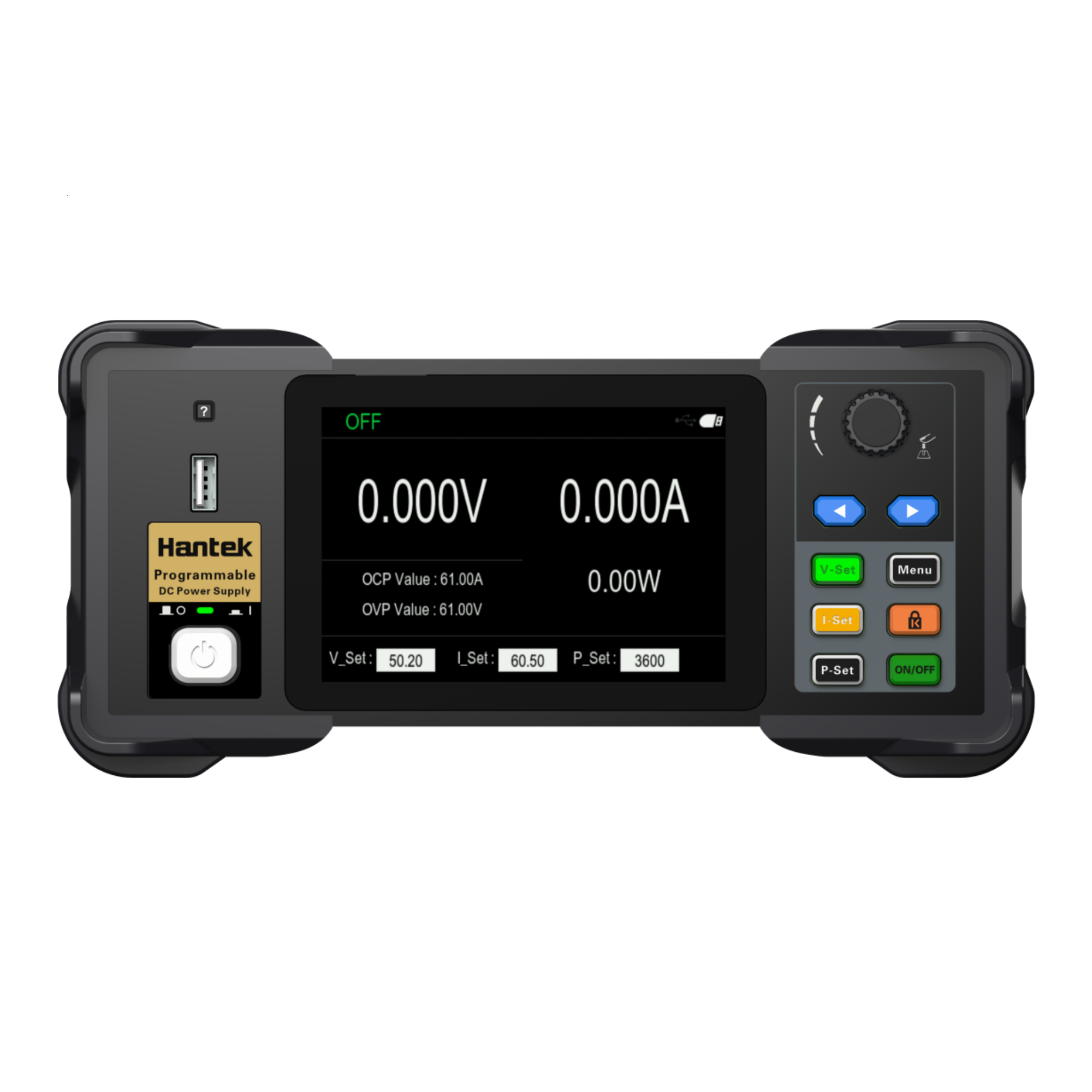

Single unit: 600W - 15kW. Output voltage: 0 - 1500V. Output current: 0 - 500A. Choose any value within these ranges.
Recorder function: It can record the output voltage, current and power, display the VT curve, and export the data.
Multiple protection functions such as overvoltage, overcurrent, overtemperature, and overpower are available. The overvoltage and overcurrent parameters can be flexibly set to effectively protect the load.
It has a remote voltage compensation function, which compensates for the voltage drop on the line.
The intelligent temperature-controlled fan automatically adjusts its speed, effectively reducing the noise of the fan.
Supports SCPI remote command control; supports USB drive (FAT32 format) storage, one-click screenshot, and data recording function;

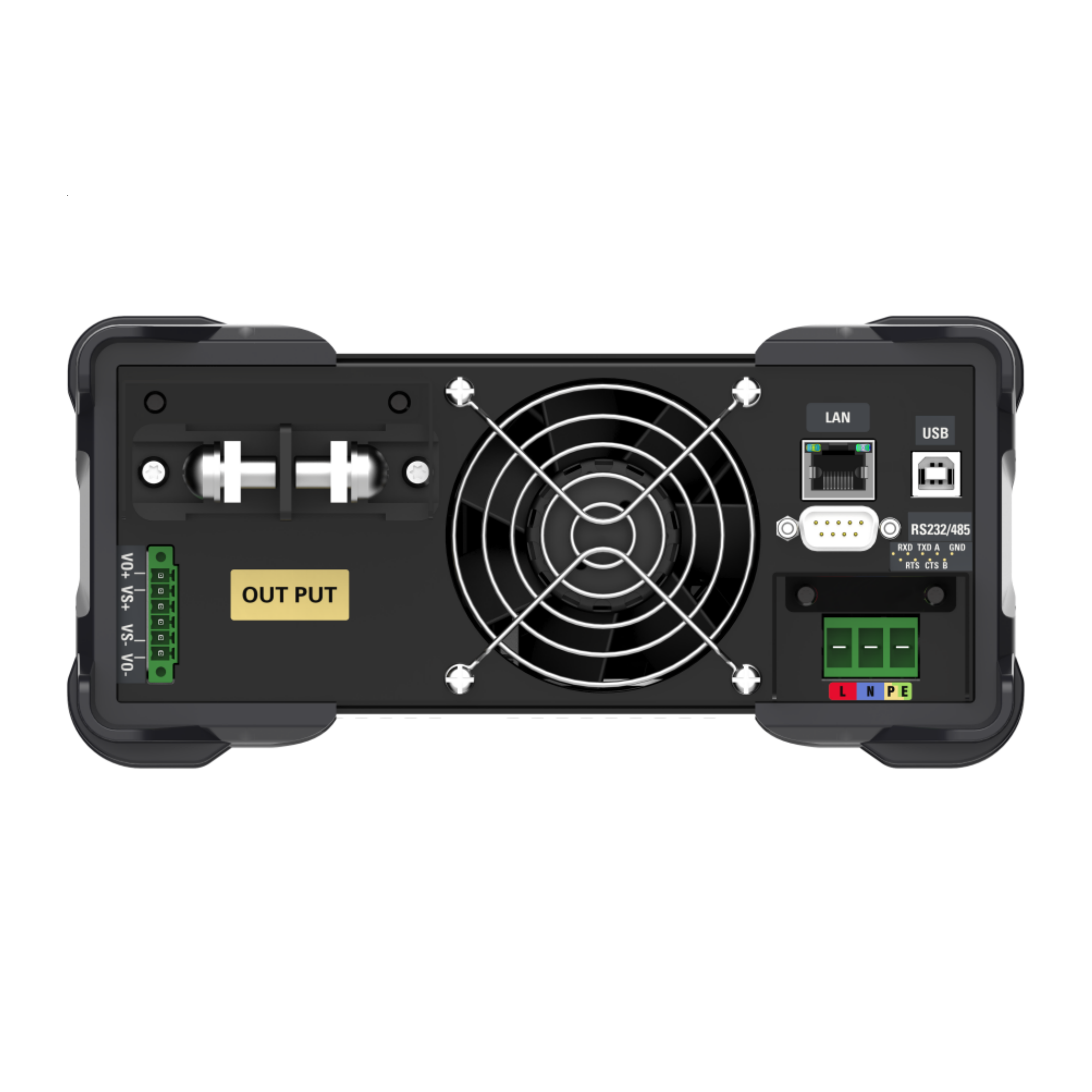

Standard configuration interfaces: RS232, RS485, USB interface. Optional LAN interface. Supports MODBUS-RTU standard communication protocol.

Wide-range power output

Single machine power: 600W - 15kW (optional), output voltage: 0 - 1500V, current: 0 - 500A. Flexible configuration available, meeting the testing and power supply requirements for various scenarios, suitable for all types of load conditions.

Data recorder function

Real-time recording of voltage, current and power operation data, intuitive display of VT characteristic curves, support for data export, facilitating analysis and tracing of the testing process.

Comprehensive and multi-level protection

It features overvoltage, overcurrent, overtemperature and overpower protection. The parameters can be flexibly set, providing precise protection for the tested load and equipment, thereby enhancing the operational safety and reliability.

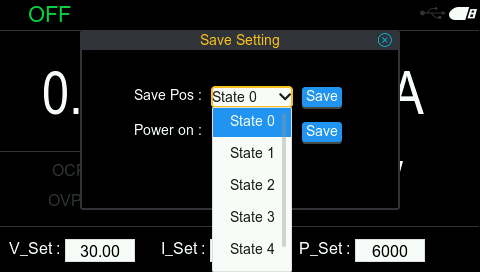

Save / recall

Save or recall preset parameters such as voltage, current, and power.

Model	Rated Voltage	Rated Current	Rated Power	Model Type	Input Voltage
HDP6006W0030V020A	0-30V	0-20A	600W	1U Half rack width	AC220V
HDP6006W0060V010A	0-60V	0-10A	600W	1U Half rack width	AC220V
HDP6006W0100V006A	0-100V	0-6A	600W	1U Half rack width	AC220V
HDP6012W0012V100A	0-12V	0-100A	1.2KW	1U Half rack width	AC220V
HDP6012W0030V040A	0-30V	0-40A	1.2KW	1U Half rack width	AC220V
HDP6012W0060V020A	0-60V	0-20A	1.2KW	1U Half rack width	AC220V
HDP6012W0100V012A	0-100V	0-12A	1.2KW	1U Half rack width	AC220V
HDP6012W0150V008A	0-150V	0-8A	1.2KW	1U Half rack width	AC220V
HDP6012W0300V004A	0-300V	0-4A	1.2KW	1U Half rack width	AC220V
HDP6012W0600V002A	0-600V	0-2A	1.2KW	1U Half rack width	AC220V
HDP6018W0030V060A	0-30V	0-60A	1.8KW	1U Half rack width	AC220V
HDP6018W0060V030A	0-60V	0-30A	1.8KW	1U Half rack width	AC220V
HDP6018W0100V018A	0-100V	0-18A	1.8KW	1U Half rack width	AC220V
HDP6018W0150V012A	0-150V	0-12A	1.8KW	1U Half rack width	AC220V
HDP6018W0300V006A	0-300V	0-6A	1.8KW	1U Half rack width	AC220V
HDP6018W0600V003A	0-600V	0-3A	1.8KW	1U Half rack width	AC220V
HDP603KW0030V120A	0-30V	0-120A	3.6KW	2U Half rack width	AC220V
HDP603KW0060V060A	0-60V	0-60A	3.6KW	2U Half rack width	AC220V
HDP603KW0100V036A	0-100V	0-36A	3.6KW	2U Half rack width	AC220V
HDP603KW0150V024A	0-150V	0-24A	3.6KW	2U Half rack width	AC220V
HDP603KW0200V018A	0-200V	0-6A	3.6KW	2U Half rack width	AC220V
HDP603KW0300V012A	0-300V	0-12A	3.6KW	2U Half rack width	AC220V
HDP603KW0600V006A	0-600V	0-6A	3.6KW	2U Half rack width	AC220V

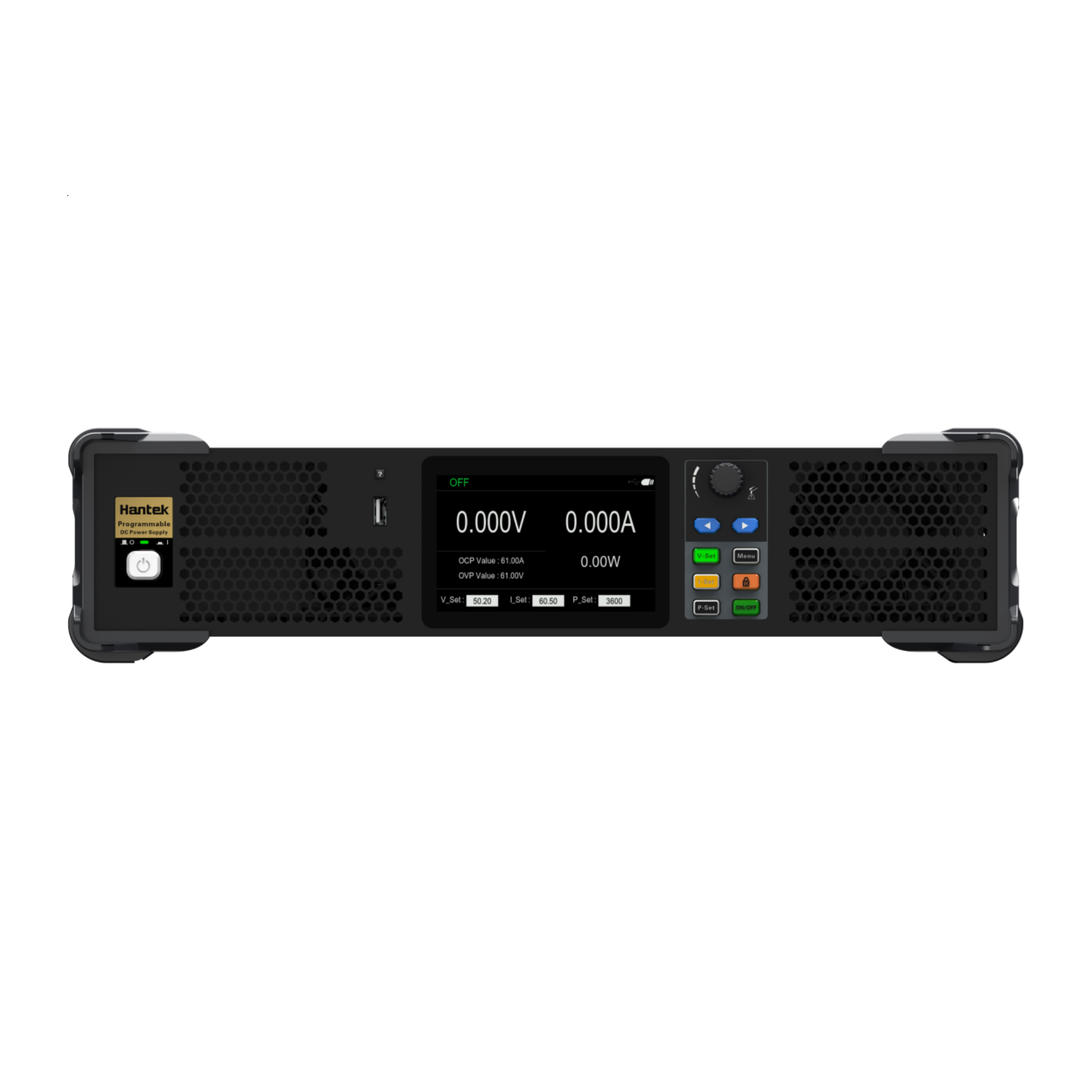

HDP606KW0030V200A	0-30V	0-200A	6KW	2U Full rack width	AC220V
HDP606KW0060V100A	0-60V	0-100A	6KW	2U Full rack width	AC220V
HDP606KW0100V060A	0-100V	0-60A	6KW	2U Full rack width	AC220V
HDP606KW0150V040A	0-150V	0-40A	6KW	2U Full rack width	AC220V
HDP606KW0200V030A	0-200V	0-30A	6KW	2U Full rack width	AC220V
HDP606KW0300V020A	0-300V	0-20A	6KW	2U Full rack width	AC220V
HDP606KW0600V010A	0-600V	0-10A	6KW	2U Full rack width	AC220V
HDP606KW1200V005A	0-1200V	0-5A	6KW	2U Full rack width	AC220V

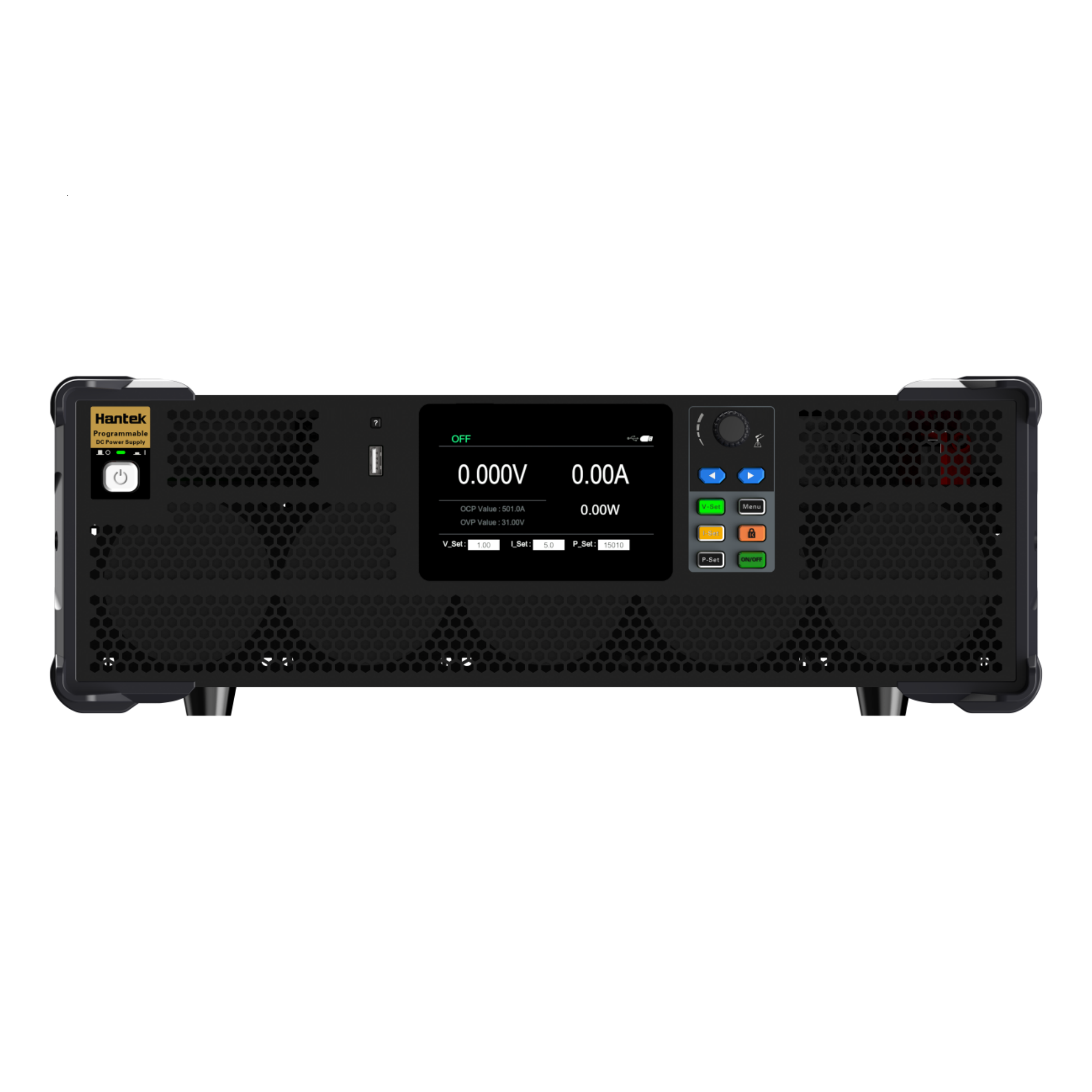

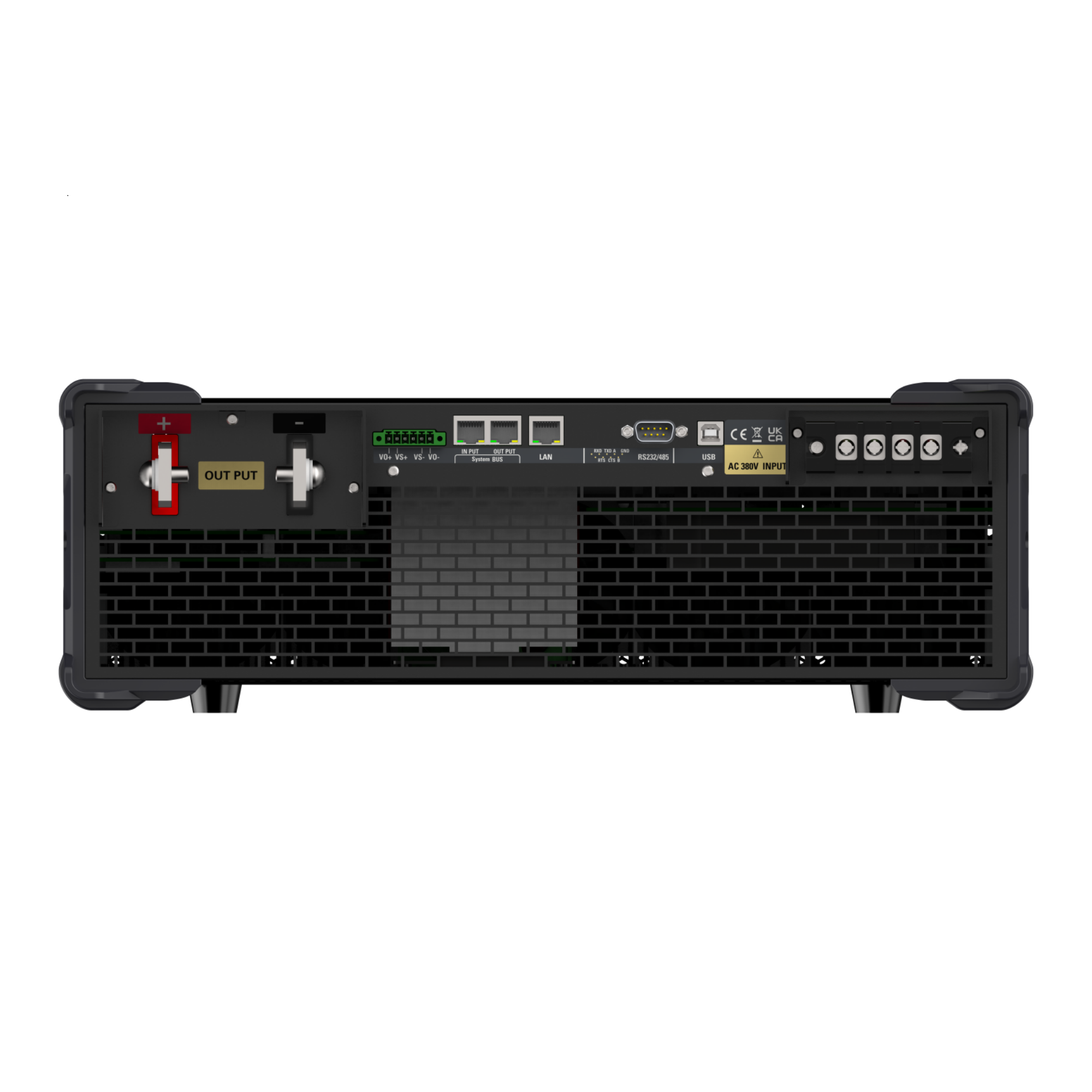

HDP615KW0030V500A	0-30V	0-500A	15KW	3U Full rack width	AC380V
HDP615KW0060V250A	0-60V	0-250A	15KW	3U Full rack width	AC380V
HDP615KW0100V150A	0-100V	0-150A	15KW	3U Full rack width	AC380V
HDP615KW0150V100A	0-150V	0-100A	15KW	3U Full rack width	AC380V
HDP615KW0200V075A	0-200V	0-75A	15KW	3U Full rack width	AC380V
HDP615KW0300V050A	0-300V	0-50A	15KW	3U Full rack width	AC380V
HDP615KW0600V025A	0-600V	0-25A	15KW	3U Full rack width	AC380V
HDP615KW1000V015A	0-1000V	0-15A	15KW	3U Full rack width	AC380V
HDP615KW1500V010A	0-1500V	0-10A	15KW	3U Full rack width	AC380V

600W（1/2 1U）

Parameters		HDP6006W0030V020A	HDP6006W0060V010A	HDP6006W0100V006A	--
Output voltage range		0-30V	0-60V	0-100V	--
Output current range		0-20A	0-10A	0-6A	--
Output power range		600W	600W	600W	--
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.1%FS+20mV	≤0.1%FS+30 mV	--
Load regulation rate	Current	≤0.05%FS+20mA	≤0.1%FS+20mA	≤0.1%FS+30 mA	--
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	--
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +30mA	≤0.1%FS +30mA	--
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	--
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	--
Ripple	Voltage	≤30mVrms	≤30mVrms	≤80mVrms	--
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤50ms	--
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤250ms	≤300ms	--
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	--
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	--
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection

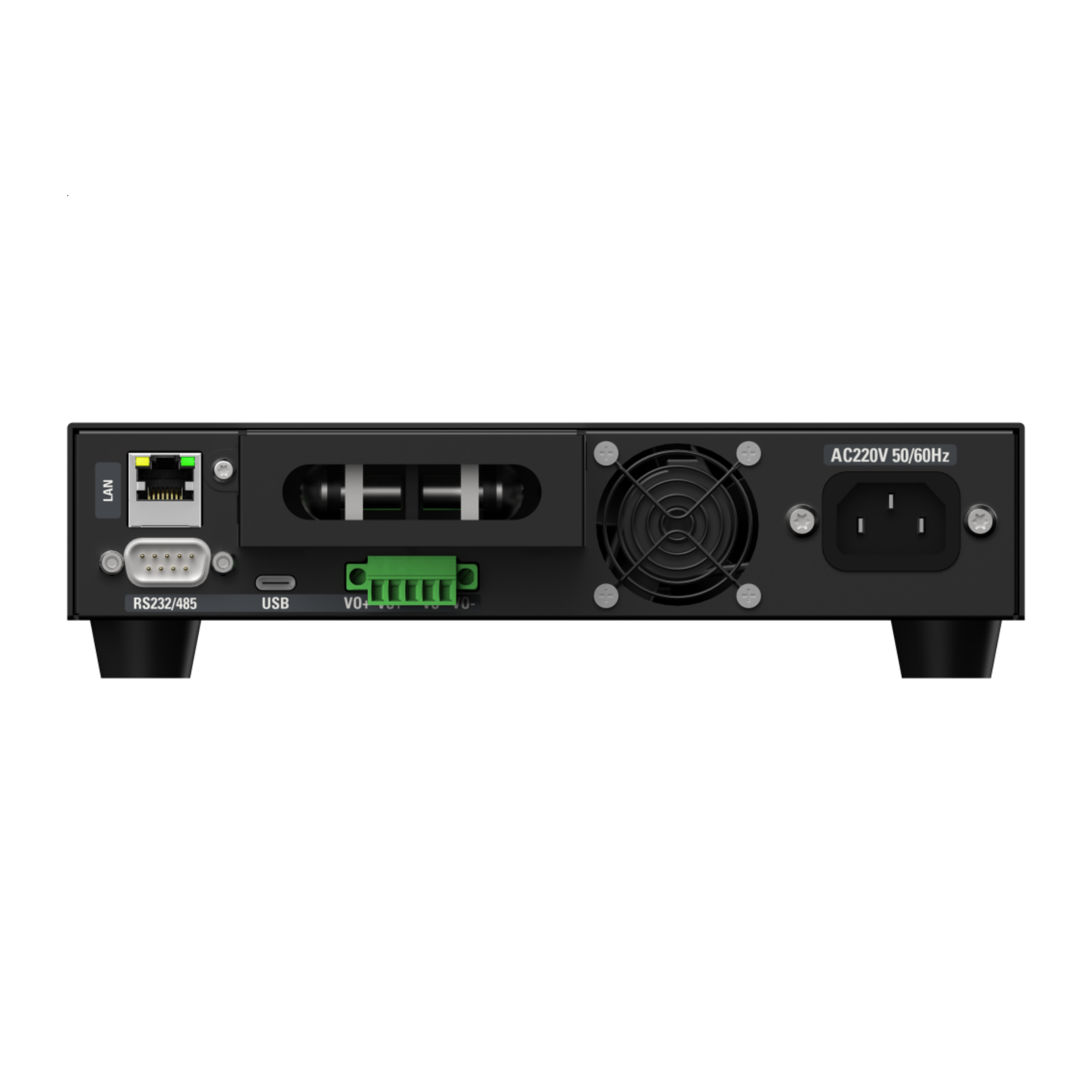

Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

1.2KW（1/2 1U）

Parameters		HDP6012W0012V100A	HDP6012W0030V040A	HDP6012W0060V020A	HDP6012W0100V012A
Output voltage range		0-12V	0-30V	0-60V	0-100V
Output current range		0-100A	0-40A	0-20A	0-12A
Output power range		1.2KW	1.2KW	1.2KW	1.2KW
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.05%FS+20mV	≤0.1%FS+20 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.05%FS+20mA	≤0.05%FS+20mA	≤0.1%FS+20 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +20mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤30mVrms	≤30mVrms	≤60mVrms	≤80mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤50ms	≤50ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤250ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤3s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤50ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

Parameters		HDP6012W0120V010A	HDP6012W0150V008A	HDP6012W0300V004A	HDP6012W0600V002A
Output voltage range		0-120V	0-150V	0-300V	0-600V
Output current range		0-10A	0-8A	0-4A	0-2A
Output power range		1.2KW	1.2KW	1.2KW	1.2KW
Load regulation rate	Voltage	≤0.1%FS+30 mV	≤0.1%FS+30 mV	≤0.1%FS+30mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.1%FS+30 mA	≤0.1%FS+30 mA	≤0.1%FS+30mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +100mV	≤0.05%FS +100mV	≤0.05%FS +150mV	≤0.05%FS +300mV
Programming accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +100mV	≤0.05%FS +100mV	≤0.05%FS +150mV	≤0.05%FS +300mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤100mVrms	≤100mVrms	≤150mVrms	≤400mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤150ms	≤150ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

1.8KW（1/2 1U）

Parameters		HDP6018W0030V060A	HDP6018W0060V030A	HDP6018W0100V018A	HDP6018W0150W012A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-60A	0-30A	0-18A	0-12A
Output power range		1.8KW	1.8KW	1.8KW	1.8KW
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.1%FS+20 mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.05%FS+20mA	≤0.1%FS+20 mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤30mVrms	≤60mVrms	≤80mVrms	≤100mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤50ms	≤50ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤50ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

Parameters		HDP6018W0300V006A	HDP6018W0600V003A	--	--
Output voltage range		0-300V	0-600V	--	--
Output current range		0-6A	0-3A	--	--
Output power range		1.8KW	1.8KW	--	--
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+30 mV	--	--
Load regulation rate	Current	≤0.1%FS+30mA	≤0.1%FS+30 mA	--	--
Programming accuracy	Voltage	≤0.05%FS +150mV	≤0.05%FS +300mV	--	--
Programming accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	--	--
Recall accuracy	Voltage	≤0.05%FS +150mV	≤0.05%FS +300mV	--	--
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	--	--
Ripple	Voltage	≤150mVrms	≤400mVrms	--	--
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	--	--
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	--	--
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	--	--
Voltage drop time (90% - 10% FS)	Fully loaded	≤150ms	≤150ms	--	--
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

3.6KW（1/2 2U）

Parameters		HDP603KW0030V120A	HDP603KW0060V060A	HDP603KW0100V036A	HDP603KW0150V024A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-120A	0-60A	0-36A	0-24A
Output power range		3.6KW	3.6KW	3.6KW	3.6KW
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.1%FS+20 mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.1%FS+30mA	≤0.1%FS+20 mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Programming accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤50mVrms	≤60mVrms	≤100mVrms	≤150mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤100ms	≤150ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤250ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤50ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection

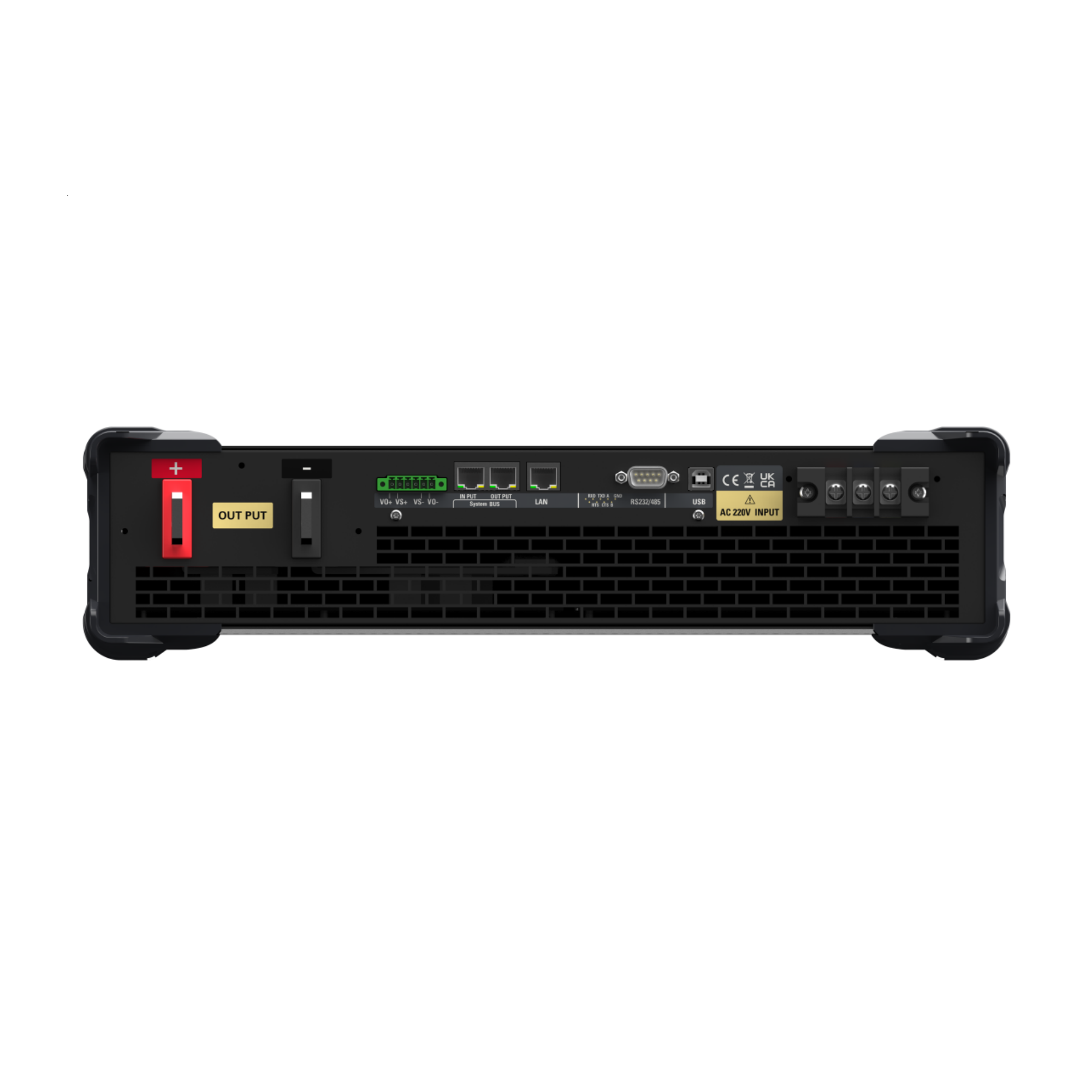

Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 109.6(H)474(D)(With sheath)
Weight (Kg)		7.6(Net weight)

Parameters		HDP603KW0200V018A	HDP603KW0300V012A	HDP603KW0600V006A	HDP603KW1200V003A
Output voltage range		0-200V	0-300V	0-600V	0-1200V
Output current range		0-18A	0-12A	0-6A	0-3A
Output power range		3.6KW	3.6KW	3.6KW	3.6KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+30 mV	≤0.05%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.1%FS+30mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +120mV	≤0.05%FS +150mV	≤0.05%FS +300mV	≤0.05%FS +1V
Programming accuracy	Current	≤0.1%FS +30mA	≤0.05%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +120mV	≤0.05%FS +150mV	≤0.05%FS +300mV	≤0.05%FS +1V
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤200mVrms	≤300mVrms	≤600mVrms	≤1200mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤150ms	≤150ms	≤150ms	≤150ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 109.6(H)474(D)(With sheath)
Weight (Kg)		7.6(Net weight)

6KW（2U）

Parameters		HDP606KW0030V200A	HDP606KW0060V100A	HDP606KW0100V060A	HDP606KW0150V040A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-200A	0-100A	0-60A	0-40A
Output power range		6KW	6KW	6KW	6KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV
Load regulation rate	Current	≤0.1%FS +10mA	≤0.1%FS+10 mA	≤0.1%FS+10 mA	≤0.1%FS+10 mA
Programming accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Programming accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA
Recall accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Recall accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA
Ripple	Voltage	≤100mVrms	≤120mVrms	≤150mVrms	≤300mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤60ms	≤100ms	≤100ms	≤100ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤450ms	≤450ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤100ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		13.7(Net weight)

Parameters		HDP606KW0200V030A	HDP606KW0300V020A	HDP606KW0600V010A	HDP606KW1200V005A
Output voltage range		0-200V	0-300V	0-600V	0-1200V
Output current range		0-30A	0-20A	0-10A	0-5A
Output power range		6KW	6KW	6KW	6KW
Load regulation rate	Voltage	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Load regulation rate	Current	≤0.1%FS+10mA	≤0.1%FS+10 mA	≤0.1%FS+20 mA	≤0.1% %+50 mA
Programming accuracy	Voltage	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Programming accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +20mA	≤0.1%FS +50mA
Recall accuracy	Voltage	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Recall accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +20mA	≤0.1%FS +50mA
Ripple	Voltage	≤300mVrms	≤300mVrms	≤600mVrms	≤900mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤100ms	≤100ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	≤8s	≤8s
Voltage drop time (90% - 10% FS)	Fully loaded	≤100ms	≤100ms	≤200ms	≤200ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		13.7(Net weight)

15KW（3U）

Parameters		HDP615KW0030V500A	HDP615KW0060V250A	HDP615KW0100V150A	HDP615KW0150V100A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-500A	0-250A	0-150A	0-100A
Output power range		15KW	15KW	15KW	15KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.2%FS +20mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA
Programming accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV
Programming accuracy	Current	≤0.2%FS +20mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA
Recall accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV
Recall accuracy	Current	≤0.2%FS +20mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA
Ripple	Voltage	≤0.2%FS+50 mVrms	≤0.2%FS+50 mVrms	≤0.2%FS+50 mVrms	≤0.2%FS+50 mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤500ms	≤500ms	≤500ms	≤500ms
Voltage drop time (90% - 10% FS)	Empty load	≤10s	≤10s	≤10s	≤10s
Voltage drop time (90% - 10% FS)	Fully loaded	≤200ms	≤200ms	≤200ms	≤200ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Three-phase three-wire + PE
Voltage input range		380VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		500(W) 430(H)132(D)(Without sheath)
Weight (Kg)		24.8(Net weight)

Parameters		HDP615KW0200V075A	HDP615KW0300V050A	HDP615KW0600V025A	HDP615KW1000V015A
Output voltage range		0-200V	0-300V	0-600V	0-1000V
Output current range		0-75A	0-50A	0-25A	0-15A
Output power range		15KW	15KW	15KW	15KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV
Load regulation rate	Current	≤0.1%FS +20mA	≤0.1%FS+20 mA	≤0.1%FS+50 mA	≤0.2%FS+50 mA
Programming accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +20mA	≤0.1%FS +50mA	≤0.2%FS +50mA
Recall accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Recall accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +20mA	≤0.1%FS +50mA	≤0.2%FS +50mA
Ripple	Voltage	≤0.2%FS+50 mVrms	≤0.1%FS+30 mVrms	≤0.1%FS+30 mVrms	≤0.1%FS+30 mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	≤300ms	≤300ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤500ms	≤500ms	≤500ms	≤500ms
Voltage drop time (90% - 10% FS)	Empty load	≤10s	≤5s	≤8s	≤10s
Voltage drop time (90% - 10% FS)	Fully loaded	≤200ms	≤200ms	≤200ms	≤200ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Three-phase three-wire + PE
Voltage input range		380VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		24.8(Net weight)

Parameters		HDP615KW1500V10A	--	--	--
Output voltage range		0-1500V	--	--	--
Output current range		0-10A	--	--	--
Output power range		15KW	--	--	--
Load regulation rate	Voltage	≤0.1%FS+10mV	--	--	--
Load regulation rate	Current	≤0.2%FS +50mA	--	--	--
Programming accuracy	Voltage	≤0.1%FS +10mV	--	--	--
Programming accuracy	Current	≤0.2%FS +50mA	--	--	--
Recall accuracy	Voltage	≤0.1%FS +10mV	--	--	--
Recall accuracy	Current	≤0.2%FS +50mA	--	--	--
Ripple	Voltage	≤0.1%FS+30 mVrms	--	--	--
Voltage rise time (10% - 90% FS)	Empty load	≤500ms	--	--	--
Voltage rise time (10% - 90% FS)	Fully loaded	≤600ms	--	--	--
Voltage drop time (90% - 10% FS)	Empty load	≤10s	--	--	--
Voltage drop time (90% - 10% FS)	Fully loaded	≤200ms	--	--	--
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Three-phase three-wire + PE
Voltage input range		380VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		24.8(Net weight)

600W（1/2 1U）

Parameters		HDP6006W0030V020A	HDP6006W0060V010A	HDP6006W0100V006A	--
Output voltage range		0-30V	0-60V	0-100V	--
Output current range		0-20A	0-10A	0-6A	--
Output power range		600W	600W	600W	--
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.1%FS+20mV	≤0.1%FS+30 mV	--
Load regulation rate	Current	≤0.05%FS+20mA	≤0.1%FS+20mA	≤0.1%FS+30 mA	--
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	--
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +30mA	≤0.1%FS +30mA	--
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	--
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	--
Ripple	Voltage	≤30mVrms	≤30mVrms	≤80mVrms	--
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤50ms	--
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤250ms	≤300ms	--
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	--
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	--
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

1.2KW（1/2 1U）

Parameters		HDP6012W0012V100A	HDP6012W0030V040A	HDP6012W0060V020A	HDP6012W0100V012A
Output voltage range		0-12V	0-30V	0-60V	0-100V
Output current range		0-100A	0-40A	0-20A	0-12A
Output power range		1.2KW	1.2KW	1.2KW	1.2KW
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.05%FS+20mV	≤0.1%FS+20 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.05%FS+20mA	≤0.05%FS+20mA	≤0.1%FS+20 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +20mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤30mVrms	≤30mVrms	≤60mVrms	≤80mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤50ms	≤50ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤250ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤3s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤50ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

Parameters		HDP6012W0120V010A	HDP6012W0150V008A	HDP6012W0300V004A	HDP6012W0600V002A
Output voltage range		0-120V	0-150V	0-300V	0-600V
Output current range		0-10A	0-8A	0-4A	0-2A
Output power range		1.2KW	1.2KW	1.2KW	1.2KW
Load regulation rate	Voltage	≤0.1%FS+30 mV	≤0.1%FS+30 mV	≤0.1%FS+30mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.1%FS+30 mA	≤0.1%FS+30 mA	≤0.1%FS+30mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +100mV	≤0.05%FS +100mV	≤0.05%FS +150mV	≤0.05%FS +300mV
Programming accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +100mV	≤0.05%FS +100mV	≤0.05%FS +150mV	≤0.05%FS +300mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤100mVrms	≤100mVrms	≤150mVrms	≤400mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤150ms	≤150ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

1.8KW（1/2 1U）

Parameters		HDP6018W0030V060A	HDP6018W0060V030A	HDP6018W0100V018A	HDP6018W0150W012A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-60A	0-30A	0-18A	0-12A
Output power range		1.8KW	1.8KW	1.8KW	1.8KW
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.1%FS+20 mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.05%FS+20mA	≤0.1%FS+20 mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤30mVrms	≤60mVrms	≤80mVrms	≤100mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤50ms	≤50ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤50ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

Parameters		HDP6018W0300V006A	HDP6018W0600V003A	--	--
Output voltage range		0-300V	0-600V	--	--
Output current range		0-6A	0-3A	--	--
Output power range		1.8KW	1.8KW	--	--
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+30 mV	--	--
Load regulation rate	Current	≤0.1%FS+30mA	≤0.1%FS+30 mA	--	--
Programming accuracy	Voltage	≤0.05%FS +150mV	≤0.05%FS +300mV	--	--
Programming accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	--	--
Recall accuracy	Voltage	≤0.05%FS +150mV	≤0.05%FS +300mV	--	--
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	--	--
Ripple	Voltage	≤150mVrms	≤400mVrms	--	--
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	--	--
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	--	--
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	--	--
Voltage drop time (90% - 10% FS)	Fully loaded	≤150ms	≤150ms	--	--
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB (type-c), RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 44.4(H)470(D)(With U-shaped handle)
Weight (Kg)		4.7(Net weight)

3.6KW（1/2 2U）

Parameters		HDP603KW0030V120A	HDP603KW0060V060A	HDP603KW0100V036A	HDP603KW0150V024A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-120A	0-60A	0-36A	0-24A
Output power range		3.6KW	3.6KW	3.6KW	3.6KW
Load regulation rate	Voltage	≤0.05%FS+20mV	≤0.1%FS+20 mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.1%FS+30mA	≤0.1%FS+20 mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Programming accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +60mV	≤0.05%FS +60mV	≤0.05%FS +80mV	≤0.05%FS +100mV
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤50mVrms	≤60mVrms	≤100mVrms	≤150mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤50ms	≤50ms	≤100ms	≤150ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤250ms	≤250ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤50ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 109.6(H)474(D)(With sheath)
Weight (Kg)		7.6(Net weight)

Parameters		HDP603KW0200V018A	HDP603KW0300V012A	HDP603KW0600V006A	HDP603KW1200V003A
Output voltage range		0-200V	0-300V	0-600V	0-1200V
Output current range		0-18A	0-12A	0-6A	0-3A
Output power range		3.6KW	3.6KW	3.6KW	3.6KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+30 mV	≤0.05%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.1%FS+30mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA	≤0.1%FS+30 mA
Programming accuracy	Voltage	≤0.05%FS +120mV	≤0.05%FS +150mV	≤0.05%FS +300mV	≤0.05%FS +1V
Programming accuracy	Current	≤0.1%FS +30mA	≤0.05%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Recall accuracy	Voltage	≤0.05%FS +120mV	≤0.05%FS +150mV	≤0.05%FS +300mV	≤0.05%FS +1V
Recall accuracy	Current	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA	≤0.1%FS +30mA
Ripple	Voltage	≤200mVrms	≤300mVrms	≤600mVrms	≤1200mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤150ms	≤150ms	≤150ms	≤150ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		233.5(W) 109.6(H)474(D)(With sheath)
Weight (Kg)		7.6(Net weight)

6KW（2U）

Parameters		HDP606KW0030V200A	HDP606KW0060V100A	HDP606KW0100V060A	HDP606KW0150V040A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-200A	0-100A	0-60A	0-40A
Output power range		6KW	6KW	6KW	6KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV
Load regulation rate	Current	≤0.1%FS +10mA	≤0.1%FS+10 mA	≤0.1%FS+10 mA	≤0.1%FS+10 mA
Programming accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Programming accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA
Recall accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Recall accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +10mA
Ripple	Voltage	≤100mVrms	≤120mVrms	≤150mVrms	≤300mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤60ms	≤100ms	≤100ms	≤100ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤450ms	≤450ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤3s	≤3s	≤5s	≤5s
Voltage drop time (90% - 10% FS)	Fully loaded	≤50ms	≤50ms	≤50ms	≤100ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		13.7(Net weight)

Parameters		HDP606KW0200V030A	HDP606KW0300V020A	HDP606KW0600V010A	HDP606KW1200V005A
Output voltage range		0-200V	0-300V	0-600V	0-1200V
Output current range		0-30A	0-20A	0-10A	0-5A
Output power range		6KW	6KW	6KW	6KW
Load regulation rate	Voltage	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Load regulation rate	Current	≤0.1%FS+10mA	≤0.1%FS+10 mA	≤0.1%FS+20 mA	≤0.1% %+50 mA
Programming accuracy	Voltage	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Programming accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +20mA	≤0.1%FS +50mA
Recall accuracy	Voltage	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Recall accuracy	Current	≤0.1%FS +10mA	≤0.1%FS +10mA	≤0.1%FS +20mA	≤0.1%FS +50mA
Ripple	Voltage	≤300mVrms	≤300mVrms	≤600mVrms	≤900mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤100ms	≤100ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤300ms	≤300ms	≤300ms	≤300ms
Voltage drop time (90% - 10% FS)	Empty load	≤5s	≤5s	≤8s	≤8s
Voltage drop time (90% - 10% FS)	Fully loaded	≤100ms	≤100ms	≤200ms	≤200ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Single-phase two-wire + PE
Voltage input range		220VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		13.7(Net weight)

15KW（3U）

Parameters		HDP615KW0030V500A	HDP615KW0060V250A	HDP615KW0100V150A	HDP615KW0150V100A
Output voltage range		0-30V	0-60V	0-100V	0-150V
Output current range		0-500A	0-250A	0-150A	0-100A
Output power range		15KW	15KW	15KW	15KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV	≤0.1%FS+30 mV
Load regulation rate	Current	≤0.2%FS +20mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA
Programming accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV
Programming accuracy	Current	≤0.2%FS +20mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA
Recall accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV	≤0.1%FS +30mV
Recall accuracy	Current	≤0.2%FS +20mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA	≤0.2%FS+20 mA
Ripple	Voltage	≤0.2%FS+50 mVrms	≤0.2%FS+50 mVrms	≤0.2%FS+50 mVrms	≤0.2%FS+50 mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	≤200ms	≤200ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤500ms	≤500ms	≤500ms	≤500ms
Voltage drop time (90% - 10% FS)	Empty load	≤10s	≤10s	≤10s	≤10s
Voltage drop time (90% - 10% FS)	Fully loaded	≤200ms	≤200ms	≤200ms	≤200ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Three-phase three-wire + PE
Voltage input range		380VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		500(W) 430(H)132(D)(Without sheath)
Weight (Kg)		24.8(Net weight)

Parameters		HDP615KW0200V075A	HDP615KW0300V050A	HDP615KW0600V025A	HDP615KW1000V015A
Output voltage range		0-200V	0-300V	0-600V	0-1000V
Output current range		0-75A	0-50A	0-25A	0-15A
Output power range		15KW	15KW	15KW	15KW
Load regulation rate	Voltage	≤0.1%FS+30mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV	≤0.1%FS+10 mV
Load regulation rate	Current	≤0.1%FS +20mA	≤0.1%FS+20 mA	≤0.1%FS+50 mA	≤0.2%FS+50 mA
Programming accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Programming accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +20mA	≤0.1%FS +50mA	≤0.2%FS +50mA
Recall accuracy	Voltage	≤0.1%FS +30mV	≤0.1%FS +10mV	≤0.1%FS +10mV	≤0.1%FS +10mV
Recall accuracy	Current	≤0.1%FS +20mA	≤0.1%FS +20mA	≤0.1%FS +50mA	≤0.2%FS +50mA
Ripple	Voltage	≤0.2%FS+50 mVrms	≤0.1%FS+30 mVrms	≤0.1%FS+30 mVrms	≤0.1%FS+30 mVrms
Voltage rise time (10% - 90% FS)	Empty load	≤200ms	≤200ms	≤300ms	≤300ms
Voltage rise time (10% - 90% FS)	Fully loaded	≤500ms	≤500ms	≤500ms	≤500ms
Voltage drop time (90% - 10% FS)	Empty load	≤10s	≤5s	≤8s	≤10s
Voltage drop time (90% - 10% FS)	Fully loaded	≤200ms	≤200ms	≤200ms	≤200ms
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Three-phase three-wire + PE
Voltage input range		380VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		24.8(Net weight)

Parameters		HDP615KW1500V10A	--	--	--
Output voltage range		0-1500V	--	--	--
Output current range		0-10A	--	--	--
Output power range		15KW	--	--	--
Load regulation rate	Voltage	≤0.1%FS+10mV	--	--	--
Load regulation rate	Current	≤0.2%FS +50mA	--	--	--
Programming accuracy	Voltage	≤0.1%FS +10mV	--	--	--
Programming accuracy	Current	≤0.2%FS +50mA	--	--	--
Recall accuracy	Voltage	≤0.1%FS +10mV	--	--	--
Recall accuracy	Current	≤0.2%FS +50mA	--	--	--
Ripple	Voltage	≤0.1%FS+30 mVrms	--	--	--
Voltage rise time (10% - 90% FS)	Empty load	≤500ms	--	--	--
Voltage rise time (10% - 90% FS)	Fully loaded	≤600ms	--	--	--
Voltage drop time (90% - 10% FS)	Empty load	≤10s	--	--	--
Voltage drop time (90% - 10% FS)	Fully loaded	≤200ms	--	--	--
Protection function		Overvoltage protection, overcurrent protection, overtemperature protection, overpower protection
Communication interface		Standard: USB, RS232, RS485. Optional: LAN
Input phase number		Three-phase three-wire + PE
Voltage input range		380VAC±10%，50/60Hz
Working temperature		0~40℃
Work humidity		20%~90%RH(non-condensation)
Size (mm)		443.5(W) 109.6(H)569(D)(With sheath)
Weight (Kg)		24.8(Net weight)

Standard Accessories

Power cord

The instrument comes with a standard power cord of the user's country's standard type. It is also available for purchase separately (for models with power of 1.8KW and below).

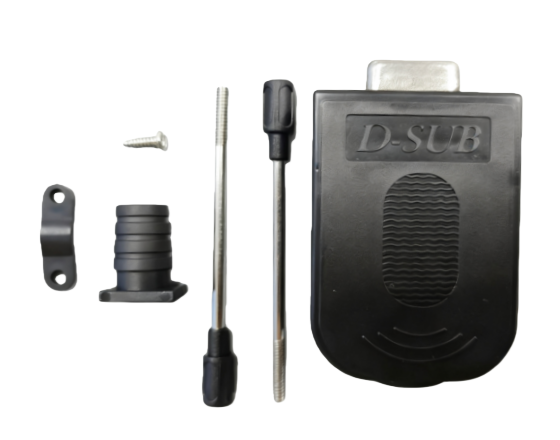

RS232 adapter

Resolve the mismatch in interface forms to ensure stable data transmission between devices.

Packing List

Included: Calibration certificate, packing list, warranty card and certificate of conformity
