Position: Products / AC/DC Current Shunt Meter
PCS 2000I 1000I
6 ½ digit resolution;30 k/s high-speed sampling frequency, which makes it easy to capture transient signals; Measures current and voltage at the same time; histogram and run chart display function; 300A/1000A current range; 4.3 inch 64K LCD; 0.1uV resolution,easy to use, parameters can be setted easily; 11 kinds of measure functions:DC Voltage, AC Voltage, DC current, AC current, 2-wire resistance, capacitance, diode, connectivity, frequency, period, temperature.
  • 6 1/2 digit reading resolution;
  • Measures current and voltage at the same time;
  • Up to 30,000 rdgs/s reading;
  • Graph display function, trenddrawing function to paperless record teating data and histogram;
  • Double display measurement function,display 2 kinds of signal parameters at the same time;
  • True RMS AC voltage and AC current measure;
  • 0.1μV resolution,easy to use, parameters can be setted easily;
  • Built in help system, convenient access to information;
  • 11 kinds of measure functions:DC Voltage, AC Voltage, DC current, AC current, 2 line resistance, capacitance, diode, connectivity, frequency, period, current range can be 300A or 1000A;
  • 4.3 inch 64K LCD;
  • Safety standards: CAT II 300 V;
  • Support standard SCPI Remote control command、upper computer software、Compatible with the latest mainstream multimeter command set;
  • Configration interface: USB Device,USB Host,RS232/485,LAN,GPIB(Only one of the RS232/485 and GPIB interfaces can be selected)
Measures current and voltage at the same time
4.3 inch 64K LCD;<br>Measures current and voltage at the same time

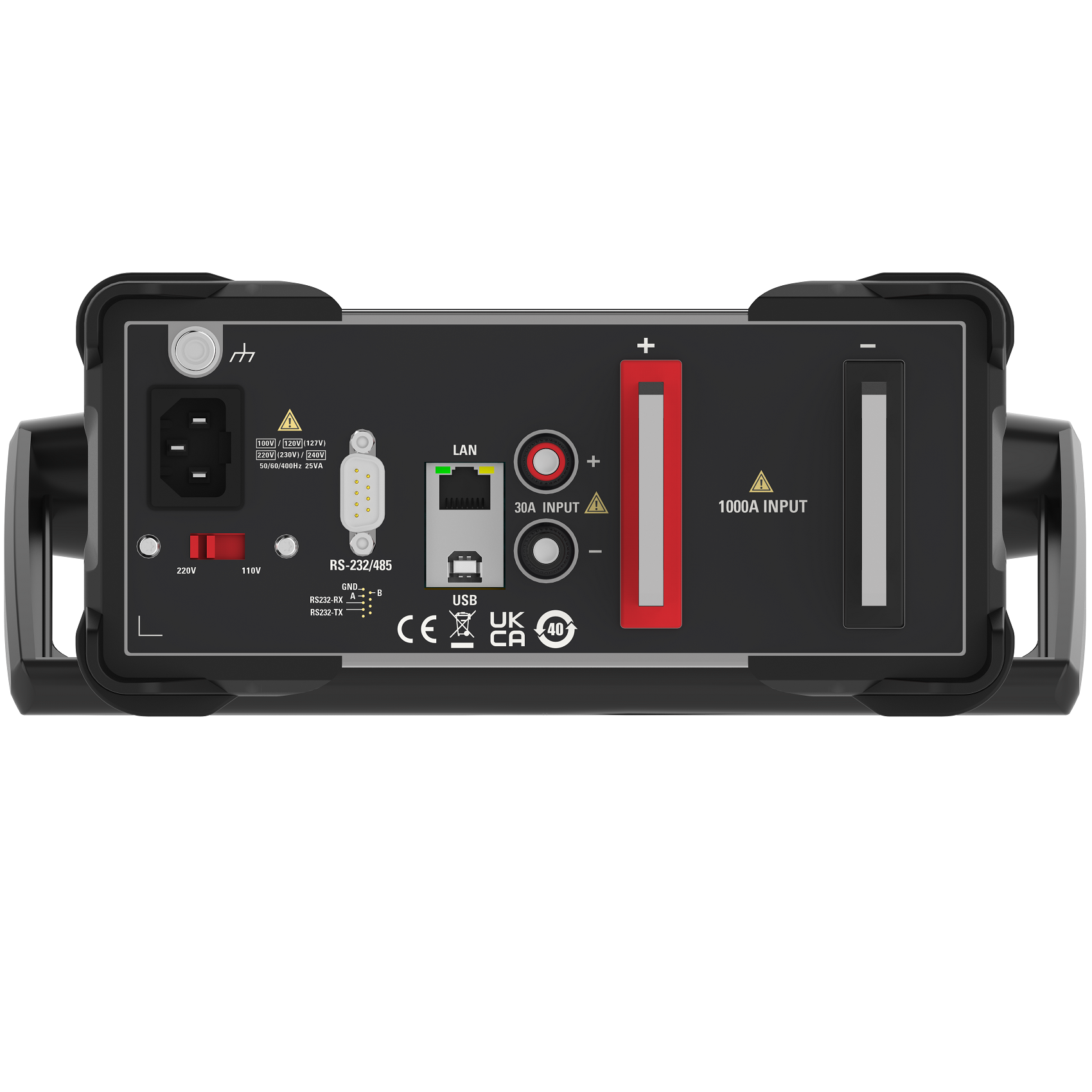

Max AC/DC current range is 300A or 1000A
PCS 2000I the Max current range is 1000A ; <br>PCS 1000I the Max current range is 300A; <br>Support standard SCPI Remote control command, upper computer software.
Graph display , trenddrawing and histogram
Graph display , trenddrawing and histogram; <br>Multiple test data display modes.

Model PCS2000I PCS1000I
Resolution bit 6 1/2 6 1/2
Max current range 1000A 300A
DCV basic precision  35 ppm 35 ppm
Maximum reading rate 30, 000 rdgs/s 30, 000 rdgs/s
Memory 10, 000 readings  10, 000 readings
Statistical graph Histogram, bar graph, trend graph Histogram, bar graph, trend graph
Interface USB, LAN,232/485, GPIB (Only one of the RS232/485 and GPIB interfaces can be selected) USB, LAN,232/485, GPIB (Only one of the RS232/485 and GPIB interfaces can be selected)

PCS accuracy specifications: ± (% of reading + % of range)1.


Range2 /frequency      24 hours3          90 days 1 year     2 years       temperature coefficient/℃ 4
DC Voltage       TCAL±1℃       TCAL±5℃ TCAL±5℃                  TCAL±5℃
100 mV 0.0030+0.0030 0.0040+0.0035 0.0050+0.0035 0.0065+0.0035 0.0005+0.0005
1 V 0.0020+0.0006 0.0030+0.0007 0.0040+0.0007 0.0055+0.0007 0.0005+0.0001
10 V 0.0015+0.0004 0.0020+0.0005 0.0035+0.0005 0.0050+0.0005 0.0005+0.0001
100 V 0.0020+0.0006 0.0035+0.0006 0.0045+0.0006 0.0060+0.0006 0.0005+0.0001
1000 V 0.0020+0.0006 0.0035+0.0010 0.0045+0.0010 0.0060+0.0010 0.0005+0.0001
True RMS AC voltage256
100 mV1 V10 V100 V and 750 V range
5 Hz - 10 Hz 0.35+0.02 0.35+0.03 0.35+0.03 0.35+0.03 0.035+0.003
10 Hz-20 KHz 0.04+0.02 0.05+0.03 0.06+0.03 0.07+0.03 0.005+0.003
20 KHz-50 KHz 0.10+0.04 0.11+0.05 0.12+0.05 0.13+0.05 0.011+0.005
50 KHz-100 KHz 0.55+0.08 0.60+0.08 0.60+0.08 0.60+0.08 0.060+0.008
100 KHz-300 KHz 4.00+0.50 4.00+0.50 4.00+0.50 4.00+0.50 0.200+0.020
Resistance7 Testing current
100 Ω 1 mA 0.0030+0.0030 0.008+0.004 0.010+0.004 0.012+0.004 0.0006+0.0005
1 kΩ 1 mA 0.0020+0.0005 0.008+0.001 0.010?0.001 0.012+0.001 0.0006+0.0001
10 kΩ 100 μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001
100 kΩ 10 μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001
1 MΩ 5 μA 0.002+0.001 0.008+0.001 0.010+0.001 0.012+0.001 0.0010+0.0002
10 MΩ 500 nA 0.015+0.001 0.020+0.001 0.040+0.001 0.060+0.001 0.0030+0.0004
100 MΩ 500 nA‖10 MΩ 0.300+0.010 0.800+0.010 0.800+0.010 0.800+0.010 0.1500+0.0002
DCcurrent Potential drop of internal resistance
30 mA <0.4V 0.010+0.004 0.030+0.005 0.050+0.005 0.060+0.005 0.0020+0.0005
300 mA <0.5V 0.050+0.006 0.080+0.010 0.100+0.010 0.120+0.010 0.0050+0.0010
3 A <0.8V 0.180+0.020 0.200+0.020 0.200+0.020 0.230+0.020 0.0050+0.0020
30 A <0.4V 0.0070+0.0030 0.0080+0.0035 0.0090+0.0035 0.0105+0.0035 0.0045+0.0005
300 A <0.4 V 0.0070+0.0030 0.0080+0.0035 0.0090+0.0035 0.0105+0.0035 0.0045+0.0005
1000 A <0.4 V 0.0070+0.0030 0.0080+0.0035 0.0090+0.0035 0.0105+0.0035 0.0045+0.0005
Isolated DC Current Monitor Accuracy8 Resolution6 1/2 Accuracy temperature coefficient/℃ 4
30 mA 0.01μA 0.1+0.05 0.001
300 mA 0.1μA 0.1+0.05 0.001
‘3 A 1μA 0.1+0.05 0.001
30 A 10μA 0.1+0.05 0.001
300 A1000A 100μA 0.2+0.05 0.001
Capacitance15
1.0000 nF 0.50+0.50 0.50+0.50 0.50+0.50 0.50+0.50 0.05+0.05
10.000 nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
100.00 nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
1.0000 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
10.000 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
100.00 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
Range2/frequency     24hours3     90days    1year  2years     temperature coefficient/℃4
 TCAL ± 1℃            TCAL ± 5 TCAL ± 5℃ TCAL ± 5℃
True RMS AC current269 Potentia drop of internal resistance
30 mA range <0.4V
3 Hz - 5 kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006
5-10kHz(typicalvalue) 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006
300 mA range <0.5V
3Hz-5kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006
5 kHz - 10 kHzTypicalvalue 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006
3 A Range <0.8V
3 Hz - 5 kHz 0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.015+0.006
5 kHz - 10 kHzTypicalvalue 0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.030+0.006
30 A300A1000A Range <0.4V, <0.4V, <0.4V
45 Hz - 400 Hz 0.5+0.05 0.5+0.05 0.5+0.05 0.5+0.05 0.035+0.006
Isolated AC Current Monitor Accuracy8
30mA300mA3A Range
45 Hz-2 KHz 0.2+0.05 0.2+0.05 0.2+0.05 0.2+0.05 0.001
2 KHz-10 KHz 0.5+0.05 0.5+0.05 0.5+0.05 0.5+0.05 0.001
30A300A1000A Range
45 Hz-400 Hz 0.5+0.05 0.5+0.05 0.5+0.05 0.5+0.05 0.001
Connectivity
1 kΩ 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020
DiodeTesting10
5 V 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020
Temperature11
PT100 (DIN/IEC751) Theprobe accuracy+0.05℃
5 kΩ thermistor Theprobe accuracy+0.1℃
FrequencyTechnical Indicator±%reading12.13
100mV1V10100V and 750 V range 14
3 Hz-10 Hz 0.1 0.1 0.1 0.1 0.1
10 Hz-100 Hz 0.03 0.03 0.03 0.03 0.035
100 Hz-1 KHz 0.003 0.008 0.01 0.01 0.015
1 KHz-300 KHz 0.002 0.006 0.01 0.01 0.015
Square wave15 0.001 0.006 0.01 0.01 0.015
Extra Gate timeerror ± %reading13
Frequency 1second 0.1second 0.01second
3 Hz-40 Hz 0 0.2 0.2
40 Hz-100 Hz 0 0.06 0.2
100 Hz-1 KHz 0 0.02 0.2
1 KHz-300 KHz 0 0.004 0.03
Square wave15 0 0 0

1.For DC:technical indicators are valid after 60 minutes of preheating, set to 10 or 100NPLC in the integral period, and enable automatic zero setting.For AC:technical indicators are effective when preheating for 60 minutes, using slow ac filter and sine wave

2.All ranges have 20% overrange except for 1,000DCV、750ACV、3ADC、30ADC、300ADC、1000ADC、3AAC、30AAC、300AAC、1000AAC and diode testing.
3.Relative to the calibration standard
4.Outside of the range of TCAL±5℃,each degree(℃) increases a coefficient.
5.Technical indicators arei valid when sinusoidal wave is input >5% range and >1mVrms.  The 750ACV range is limited to 8× 107v-hz.
For inputs within 1% and 5% of range and frequency<50 kHz, add 0.1% of range additional error. For 50kHz to 100kHz, add 0.13% of range additional error.
6.Low frequency performance:three filter Settings are provided:3Hz、20Hz、200Hz.The frequency beyond the filter setting has been specified, no additional errors will occur.
7.Technical indicators are suitable for 4 lines or 2 lines measurement(peration bias returns to zero)resistance measurement.If there is no mathematical null, 2 lines resistance measurement will increase 0.2 Ω additional error.
8. Accuracy: ±(% output + % of full scale); Monitor output voltage for the full scale current = 3V.
9.Technical indicators are valid when sine wave is input >1.5% range and >1mAAC.

10.Technical indicators are suitable for the voltage measured at the input end.1mA test current is typical.The change of current source will lead to the change of voltage drop of diode junction
11.The selected probe limits the actual measuring range and measurement errors.Probe accuracy has included all measurement and ITS-90 temperature conversion errors.PT100Ro can be set to 100Ω±5Ω, to eliminate the original probe error.
12.Unless otherwise indicated, the technical indicators are valid after 60 minutes of warm-up and with sinusoidal input.Technical indicators are suitable for 1s gate time.(7 bits)
13.Suitable for sinusoidal and square wave input ≥100mV.For 10mV to 100mV inputs, multiply the reading error % by 10.
14.The range is 10% to 120% below 750ACV.
15.The square wave input is specified as 10Hz-300kHz.

PCS accuracy specifications: ± (% of reading + % of range)1.


Range2 /frequency      24 hours3          90 days 1 year     2 years       temperature coefficient/℃ 4
DC Voltage       TCAL±1℃       TCAL±5℃ TCAL±5℃                  TCAL±5℃
100 mV 0.0030+0.0030 0.0040+0.0035 0.0050+0.0035 0.0065+0.0035 0.0005+0.0005
1 V 0.0020+0.0006 0.0030+0.0007 0.0040+0.0007 0.0055+0.0007 0.0005+0.0001
10 V 0.0015+0.0004 0.0020+0.0005 0.0035+0.0005 0.0050+0.0005 0.0005+0.0001
100 V 0.0020+0.0006 0.0035+0.0006 0.0045+0.0006 0.0060+0.0006 0.0005+0.0001
1000 V 0.0020+0.0006 0.0035+0.0010 0.0045+0.0010 0.0060+0.0010 0.0005+0.0001
True RMS AC voltage256
100 mV1 V10 V100 V and 750 V range
5 Hz - 10 Hz 0.35+0.02 0.35+0.03 0.35+0.03 0.35+0.03 0.035+0.003
10 Hz-20 KHz 0.04+0.02 0.05+0.03 0.06+0.03 0.07+0.03 0.005+0.003
20 KHz-50 KHz 0.10+0.04 0.11+0.05 0.12+0.05 0.13+0.05 0.011+0.005
50 KHz-100 KHz 0.55+0.08 0.60+0.08 0.60+0.08 0.60+0.08 0.060+0.008
100 KHz-300 KHz 4.00+0.50 4.00+0.50 4.00+0.50 4.00+0.50 0.200+0.020
Resistance7 Testing current
100 Ω 1 mA 0.0030+0.0030 0.008+0.004 0.010+0.004 0.012+0.004 0.0006+0.0005
1 kΩ 1 mA 0.0020+0.0005 0.008+0.001 0.010?0.001 0.012+0.001 0.0006+0.0001
10 kΩ 100 μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001
100 kΩ 10 μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001
1 MΩ 5 μA 0.002+0.001 0.008+0.001 0.010+0.001 0.012+0.001 0.0010+0.0002
10 MΩ 500 nA 0.015+0.001 0.020+0.001 0.040+0.001 0.060+0.001 0.0030+0.0004
100 MΩ 500 nA‖10 MΩ 0.300+0.010 0.800+0.010 0.800+0.010 0.800+0.010 0.1500+0.0002
DCcurrent Potential drop of internal resistance
30 mA <0.4V 0.010+0.004 0.030+0.005 0.050+0.005 0.060+0.005 0.0020+0.0005
300 mA <0.5V 0.050+0.006 0.080+0.010 0.100+0.010 0.120+0.010 0.0050+0.0010
3 A <0.8V 0.180+0.020 0.200+0.020 0.200+0.020 0.230+0.020 0.0050+0.0020
30 A <0.4V 0.0070+0.0030 0.0080+0.0035 0.0090+0.0035 0.0105+0.0035 0.0045+0.0005
300 A <0.4 V 0.0070+0.0030 0.0080+0.0035 0.0090+0.0035 0.0105+0.0035 0.0045+0.0005
1000 A <0.4 V 0.0070+0.0030 0.0080+0.0035 0.0090+0.0035 0.0105+0.0035 0.0045+0.0005
Isolated DC Current Monitor Accuracy8 Resolution6 1/2 Accuracy temperature coefficient/℃ 4
30 mA 0.01μA 0.1+0.05 0.001
300 mA 0.1μA 0.1+0.05 0.001
‘3 A 1μA 0.1+0.05 0.001
30 A 10μA 0.1+0.05 0.001
300 A1000A 100μA 0.2+0.05 0.001
Capacitance15
1.0000 nF 0.50+0.50 0.50+0.50 0.50+0.50 0.50+0.50 0.05+0.05
10.000 nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
100.00 nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
1.0000 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
10.000 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
100.00 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
Range2/frequency     24hours3     90days    1year  2years     temperature coefficient/℃4
 TCAL ± 1℃            TCAL ± 5 TCAL ± 5℃ TCAL ± 5℃
True RMS AC current269 Potentia drop of internal resistance
30 mA range <0.4V
3 Hz - 5 kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006
5-10kHz(typicalvalue) 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006
300 mA range <0.5V
3Hz-5kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006
5 kHz - 10 kHzTypicalvalue 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006
3 A Range <0.8V
3 Hz - 5 kHz 0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.015+0.006
5 kHz - 10 kHzTypicalvalue 0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.030+0.006
30 A300A1000A Range <0.4V, <0.4V, <0.4V
45 Hz - 400 Hz 0.5+0.05 0.5+0.05 0.5+0.05 0.5+0.05 0.035+0.006
Isolated AC Current Monitor Accuracy8
30mA300mA3A Range
45 Hz-2 KHz 0.2+0.05 0.2+0.05 0.2+0.05 0.2+0.05 0.001
2 KHz-10 KHz 0.5+0.05 0.5+0.05 0.5+0.05 0.5+0.05 0.001
30A300A1000A Range
45 Hz-400 Hz 0.5+0.05 0.5+0.05 0.5+0.05 0.5+0.05 0.001
Connectivity
1 kΩ 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020
DiodeTesting10
5 V 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020
Temperature11
PT100 (DIN/IEC751) Theprobe accuracy+0.05℃
5 kΩ thermistor Theprobe accuracy+0.1℃
FrequencyTechnical Indicator±%reading12.13
100mV1V10100V and 750 V range 14
3 Hz-10 Hz 0.1 0.1 0.1 0.1 0.1
10 Hz-100 Hz 0.03 0.03 0.03 0.03 0.035
100 Hz-1 KHz 0.003 0.008 0.01 0.01 0.015
1 KHz-300 KHz 0.002 0.006 0.01 0.01 0.015
Square wave15 0.001 0.006 0.01 0.01 0.015
Extra Gate timeerror ± %reading13
Frequency 1second 0.1second 0.01second
3 Hz-40 Hz 0 0.2 0.2
40 Hz-100 Hz 0 0.06 0.2
100 Hz-1 KHz 0 0.02 0.2
1 KHz-300 KHz 0 0.004 0.03
Square wave15 0 0 0

1.For DC:technical indicators are valid after 60 minutes of preheating, set to 10 or 100NPLC in the integral period, and enable automatic zero setting.For AC:technical indicators are effective when preheating for 60 minutes, using slow ac filter and sine wave

2.All ranges have 20% overrange except for 1,000DCV、750ACV、3ADC、30ADC、300ADC、1000ADC、3AAC、30AAC、300AAC、1000AAC and diode testing.
3.Relative to the calibration standard
4.Outside of the range of TCAL±5℃,each degree(℃) increases a coefficient.
5.Technical indicators arei valid when sinusoidal wave is input >5% range and >1mVrms.  The 750ACV range is limited to 8× 107v-hz.
For inputs within 1% and 5% of range and frequency<50 kHz, add 0.1% of range additional error. For 50kHz to 100kHz, add 0.13% of range additional error.
6.Low frequency performance:three filter Settings are provided:3Hz、20Hz、200Hz.The frequency beyond the filter setting has been specified, no additional errors will occur.
7.Technical indicators are suitable for 4 lines or 2 lines measurement(peration bias returns to zero)resistance measurement.If there is no mathematical null, 2 lines resistance measurement will increase 0.2 Ω additional error.
8. Accuracy: ±(% output + % of full scale); Monitor output voltage for the full scale current = 3V.
9.Technical indicators are valid when sine wave is input >1.5% range and >1mAAC.

10.Technical indicators are suitable for the voltage measured at the input end.1mA test current is typical.The change of current source will lead to the change of voltage drop of diode junction
11.The selected probe limits the actual measuring range and measurement errors.Probe accuracy has included all measurement and ITS-90 temperature conversion errors.PT100Ro can be set to 100Ω±5Ω, to eliminate the original probe error.
12.Unless otherwise indicated, the technical indicators are valid after 60 minutes of warm-up and with sinusoidal input.Technical indicators are suitable for 1s gate time.(7 bits)
13.Suitable for sinusoidal and square wave input ≥100mV.For 10mV to 100mV inputs, multiply the reading error % by 10.
14.The range is 10% to 120% below 750ACV.
15.The square wave input is specified as 10Hz-300kHz.
