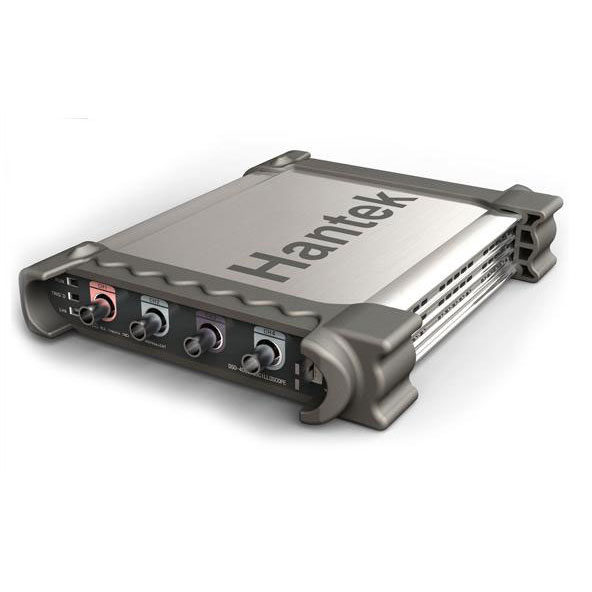

Features
| Model | DSO3064A | DSO3064 |
| Analog Channels | 4 | 4 |
| Arb. Waveform Generator | Yes | No |
| Logic Analyzer | No | No |

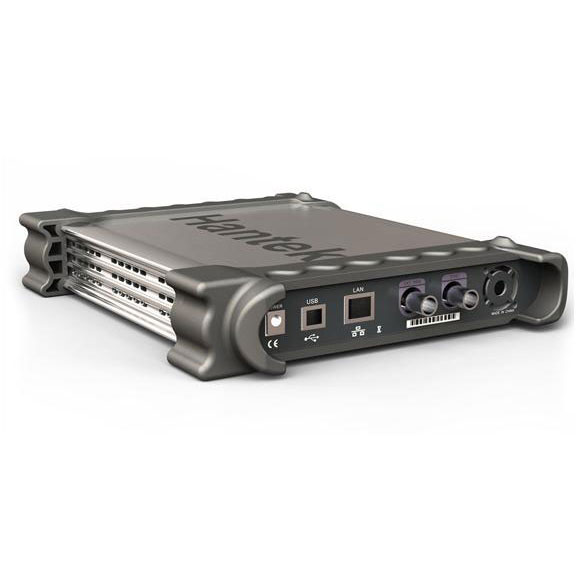

Function Picture
|
For the models with logic analyzer function |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model | DSO3064A | DSO3064 | |||
| VERTICAL | |||||
| Analog Channels | 4 | 4 | |||
| Bandwidth | 60MHz | 60MHz | |||
| Rise Time | 5.8ns | 5.8ns | |||
| Input Impedance | Resistance: 1MΩ; Capacitance: 25 pF | ||||
| Input Sensitivity | 10mV/div to 5V/div | ||||
| Input Coupling | AC/DC/GND | ||||
| Vertical Resolution | 8 bits | ||||
| Memory Depth | 10K-16M/CH | ||||
| Maximum Input | 400V (DC+AC Peak) | ||||
| HORIZONTAL | |||||
| Real-Time Sampling Rate | 200MS/s | 200MS/s | |||
| Time Base Range | 5ns/div to 1000s/div(1-2-5 sequences) | ||||
| Time Base Precision | ±50ppm | ||||
| TRIGGER | |||||
| Source | CH1, CH2,CH3,CH4,EXT | ||||
| Mode | Edge,Pulse,Video,Alternative | ||||
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | ||||
| Cursors Measurement | Cross, Trace, Horizontal, Vertical | ||||
| Waveform Signal Process | +,- , x,÷, FFT, Invert | ||||
| Voltage Range | 10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; | ||||
| 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; | |||||
| 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 | |||||
| Current Range | CC65(20A),CC65(60A),CC650,CC1100 | ||||
| FFT | Rectangular, Hanning, Hamming, Blackman Window | ||||
| Math | Adition, subtraction, multiplication, division | ||||
| Logic Analyzer | |||||
| Arbitrary Waveform Generator Mode | |||||
| Waveform Frequency | DC~25MHz | -- | |||
| DAC | 2K~200MHz adjustable | -- | |||
| Frequency Resolution | 0.10% | -- | |||
| Channel | 1CH waveform output | -- | |||
| Waveform Depth | 4KSa | -- | |||
| Vertical Resolution | 12 bit | -- | |||
| Frequency Stability | <30ppm | -- | |||
| Wave Amplitude | ±3.5V Max. | -- | |||
| Output Impedance | 50 Ω | -- | |||
| Output Current | 50mA Ipeak=50mA | -- | |||
| System BW | 25M | -- | |||
| Harmonic Distortion | -50dBc(1KHz), -40dBc(10KHz) | -- | |||
| INTERFACE | USB 2.0 (Lan Optional) | ||||
| POWER SOURCE | 8--36V Wide range of input voltage, suitable | ||||
| Volume | 255 x 190 x 45 (mm) | ||||
| Weight | 1Kg | ||||
Standard accessories
Extra standard accessories for models with logic analyzer
Extra standard accessory for models with arb. waveform generator
Optional interface for oscilloscope section
LAN (HT312)
| Model | Description | View Manual |
| HT300B,HT500B | 350Mhz,500MHz,10:1/1:1 | Download |
| HT-100B，HT-200B | 100MHz,200MHz,10:1/1:1 | Download |
| PP-80,PP-150,PP-200 | 60MHz,100MHz,200MHz,10:1/1:1 | Download |
| PP80B, PP150B, PP200B, PP300B | 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 | Download |
| PP-90 | 80MHz,10:1/1:1 | Download |
| T3100 | 100MHz，100：1，2000VDC Peak AC | Download |
| Model | Description | View Manual |
| CC65 | AC/DC: 0 – 20KHz，20mA to 65A DC | Download |
| CC650 | AC:0 – 5KHz，1A - 500A ，DC:1A - 650A | Download |
| CC800 | AC:0 – 5KHz，1A - 500A ，DC:1A - 800A | Download |
