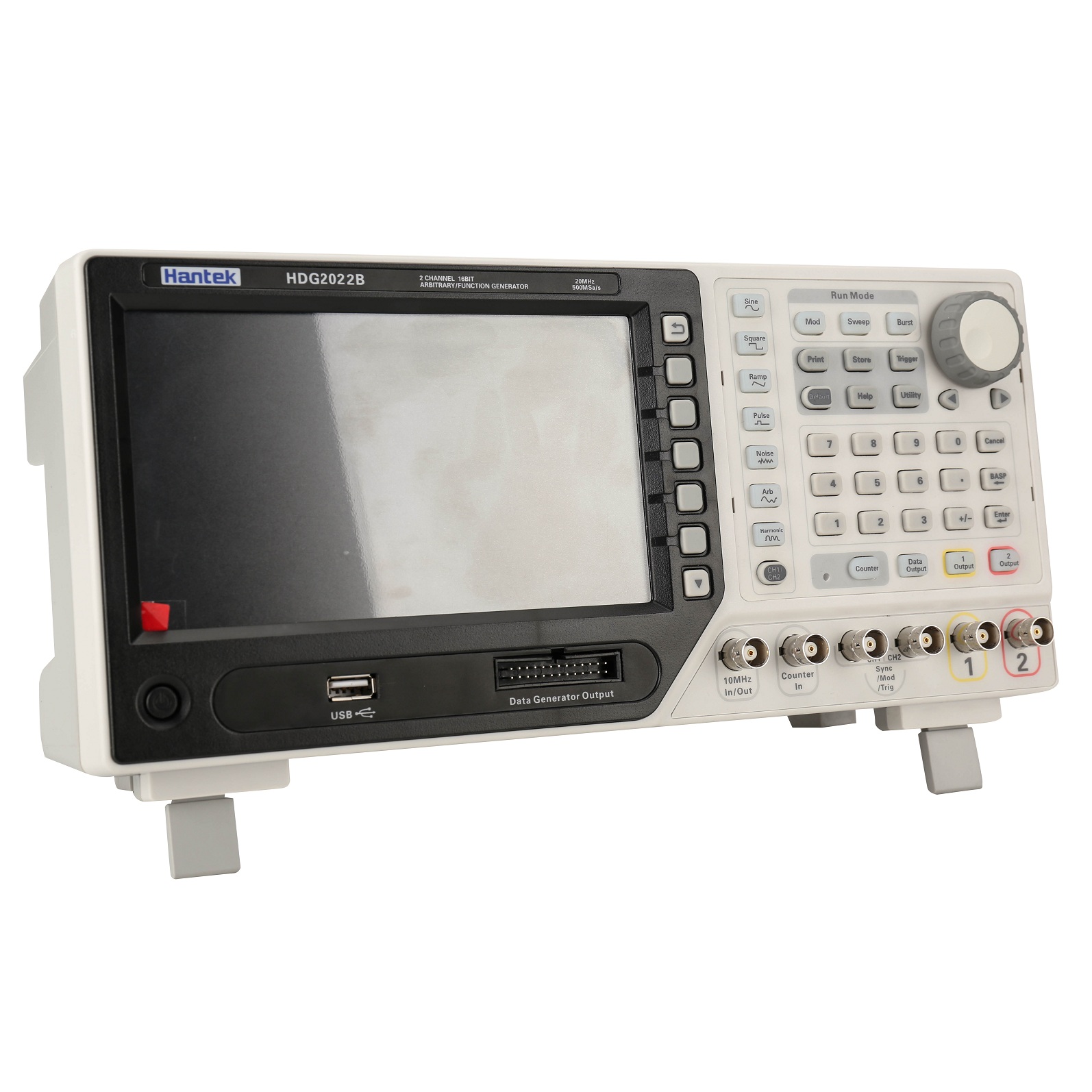

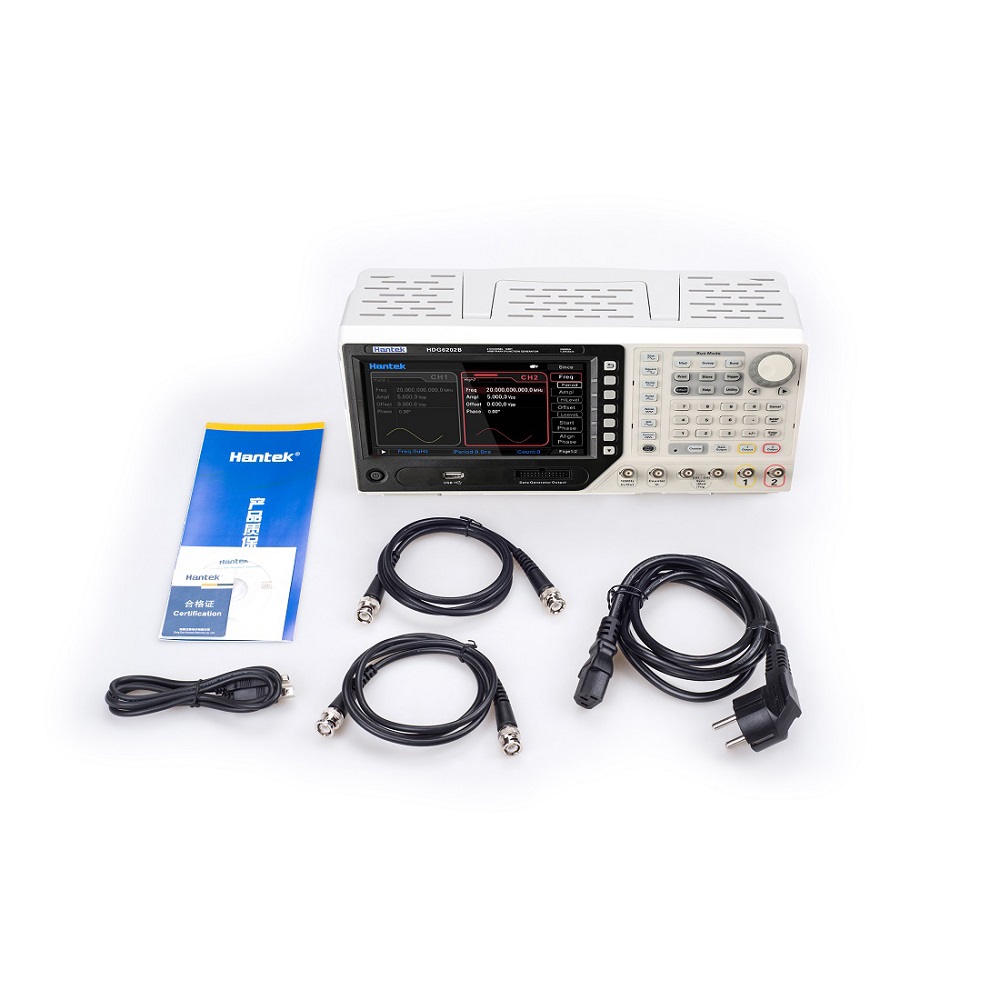

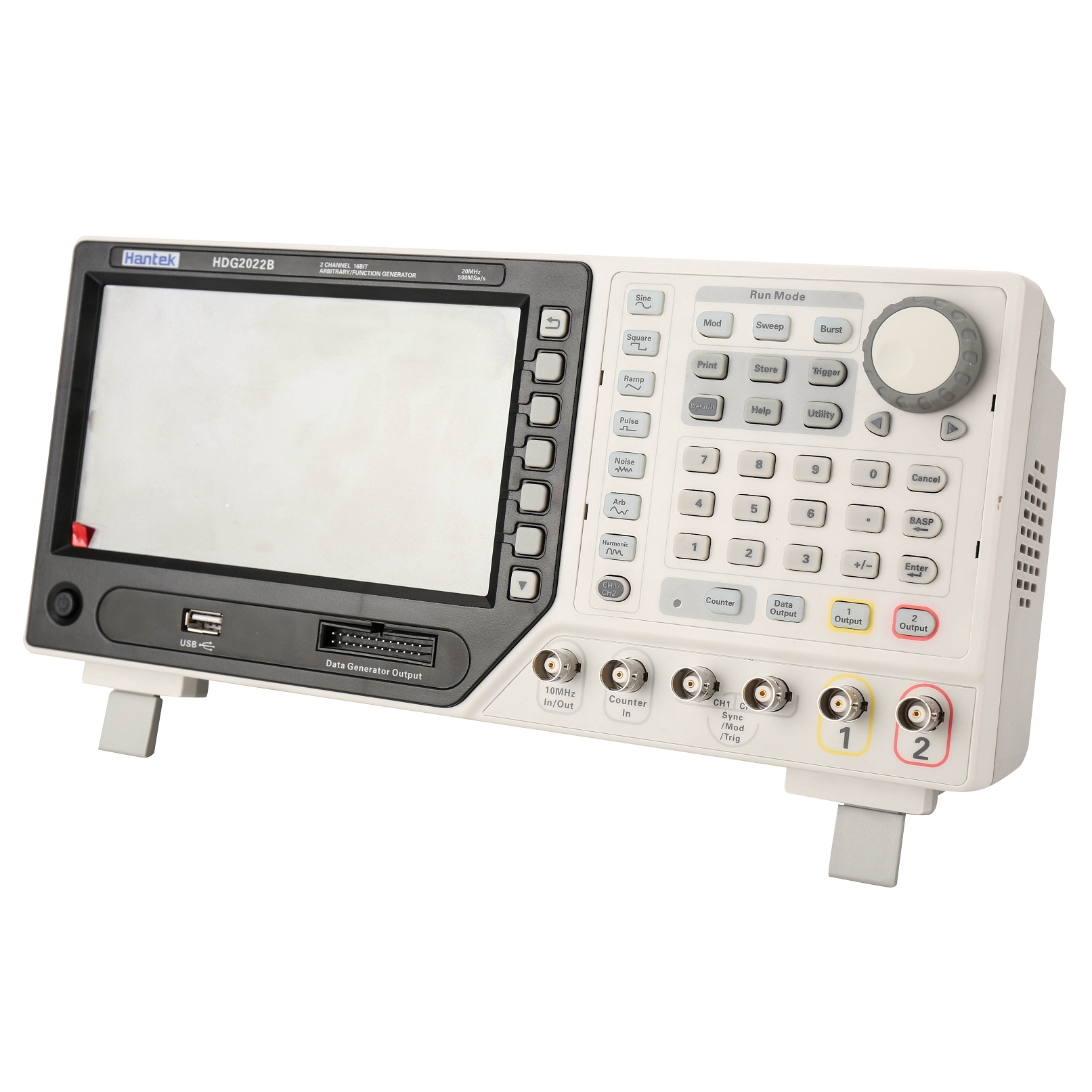

| Model | HDG2102B | HDG2082B | HDG2062B | HDG2032B |
| Main Features | ||||
| Channel | 2 | 2 | 2 | 2 |
| Memory Depth | 64M | 64M | 64M | 64M |
| Frenquency | 100MHz | 80MHz | 60MHz | 30MHz |
| Sample Rate | 250MSa/s | |||
| Voltage Resolution | 16Bit | |||
| Digital Output | 16 Channels output | |||
| Frenquency Characteristic | ||||
| Standard Waveforms | Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC | |||
| Sine | 1uHz~Max. | |||
| Square | 1uHz~30MHz | |||
| Pluse | 1uHz~15MHz | |||
| Ramp/Triangle | 1uHz~4MHz | |||
| White Noise | 1uHz~Max. | |||
| Arb. | 1uHz~20MHz | 1uHz~20MHz | 1uHz~20MHz | 1uHz~20MHz |
| Resolution | 1uHz | |||
| Accuracy | ±50ppm, 18~28℃ | |||
| Sine Wave Spectrum Purity | ||||
| Harmonic Distortion | Typical（0dBm）DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dBc | |||
| Total Harmonic Distortion | <0.1% (10Hz-20kHz, 0dBm) | |||
| Spurious signal | Typical(0dBm):≤10MHz: <-65dBc; | |||
| (non-hormonic) | >10MHz <-65dBc+6dB/spectrum phase | |||
| Phase Noise | Typical(0dBm,10kHz offset,) 10MHz: ≤-115dBc/Hz | |||
| Square | ||||
| Rise/Down time | <10ns | <11ns | <12ns | <14ns |
| Overshoot | <3%(100KHz, 1Vpp) | |||
| Duty Cycle | ≤10MHz: 20.0%~80.0%; | 8.0%~92.0% | ||
| 10MHz~40MHz: 40.0%~60.0%; | ||||
| >40MHz: 50.0% | ||||
| Non-symmetry | 1% of period+5ns | |||
| Jitter（rms） | Typical（1MHz,1Vpp, 50Ω）≤5MHz: 2ppm+500ps; > 5MHz: 500ps | |||
| Ramp | ||||
| Linearity | ≤1%(1KHz, 1Vpp) | |||
| Symmetry | 0%~100% | |||
| Pluse | ||||
| Period | 33.33ns~1Ms | 40ns~1Ms | 40ns~1Ms | 50ns~1Ms |
| Pulse | ≥12ns | ≥14ns | ≥14ns | ≥16ns |
| Leading Edge Time | ≥8ns | ≥9ns | ≥10ns | ≥10ns |
| Overshoot | <3%(1VPP) | |||
| Jitter（rms） | Typical（1MHz, 1Vpp, 50Ω） | |||
| ≤5MHz 2ppm+500ps | ||||
| > 5MHz 500ps | ||||
| Arb. Wavefrom Generator | ||||
| Waveform Length | 64M Point | |||
| Vertical Resolution | 16 Bit | |||
| Sample Rate | 250MSa/s | |||
| Rise/Fall time | Typical(1Vpp):<6ns | |||
| Jitter | Typical（1MHz, 1Vpp, 50Ω） | |||
| ≤5MHz 2ppm+500ps; | ||||
| > 5MHz 500ps | ||||
| Amplitude characteristic | ||||
| Amplitude Range | ≤20MHz:2mVpp - 20Vpp;≤60MHz:2mVpp -15Vpp;≤80MHz:2mVpp -10Vpp; | |||
| ≤90MHz:2mVpp - 5Vpp;≤100MHz:2mVpp - 2Vpp | ||||
| Accuracy | Typical（1kHz Sine, 0V deviation, >10mVpp, Auto); ±1% of setting ±2mVpp | |||
| Amplitude Flatness | ≤10MHz:±0.1dB;≤60MHz:±0.2dB;≤100MHz:±0.4dB | |||
| Resolution | 1mv or 4 digits | |||
| Impedance | 50Ω | |||
| Offset Characteristic | ||||
| Range | |Voffset| < Vmax – Vpp/2 | |||
| Accuracy | ±(1% of setting + 5mV + 0.5% of amplitude） | |||
| Modulation Characteristic | ||||
| Modulation Type | AM, FM,PM,2ASK,2FSK,2PSK,PWM | |||
| AM | ||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | |||
| Source | Internal/External | |||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb | |||
| Frequency | 1Hz~500KHz | |||
| Depth | 0%~120% | |||
| FM | ||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | |||
| Source | Internal/External | |||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb | |||
| Frequency | 1Hz~500KHz | |||
| Frequency Deviation | 0~360 | |||
| PM | ||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | |||
| Source | Internal/External | |||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb | |||
| Frequency | 1Hz~500KHz | |||
| Frequency Deviation | 0%~120% | |||
| 2ASK | ||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | |||
| Source | Internal/External | |||
| Modulating Waveforms | Square of 50% duty cycle | |||
| Code Rate | 1Hz~500KHz | |||
| 2FSK | ||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | |||
| Source | Internal/External | |||
| Modulating Waveforms | Square of 50% duty cycle | |||
| Code Rate | 1Hz~500KHz | |||
| 2PSK | ||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | |||
| Source | Internal/External | |||
| Modulating Waveforms | Square of 50% duty cycle | |||
| Code Rate | 1Hz~500KHz | |||
| PWM | ||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | |||
| Source | Internal/External | |||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb. | |||
| Code Rate | 1Hz~500KHz | |||
| Width Deviation | 0% to 100% of Pulse Width | |||
| Burst Characteristic | ||||
| Burst Count | 1~2000000000 | |||
| Gated Source | External trigger | |||
| Trigger Source | Internal, External or Manual | |||
| Sweep Characteristics | ||||
| Type | linear | |||
| TypeDirection | Up | |||
| Sweep time | 280 000s | |||
| Hold/Return time | 280 000s | |||
| Trigger Source | Internal, External, Manual | |||
| Mark | Falling Edge of Sync signal(programmable) | |||
| General Specifications | ||||
| Interface | USB host, USB Device, LAN optional | |||
| Display | 7’’ 64K Color TFT Display, 800*480 | |||
| Power Voltage | 100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ; 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ | |||
| Power Consumption | <60W | |||
| Output Current | 0.15A | |||
| Size | 305mm x 100mm x 130mm(L x W x H) | |||
| Weight | 3KG | |||
