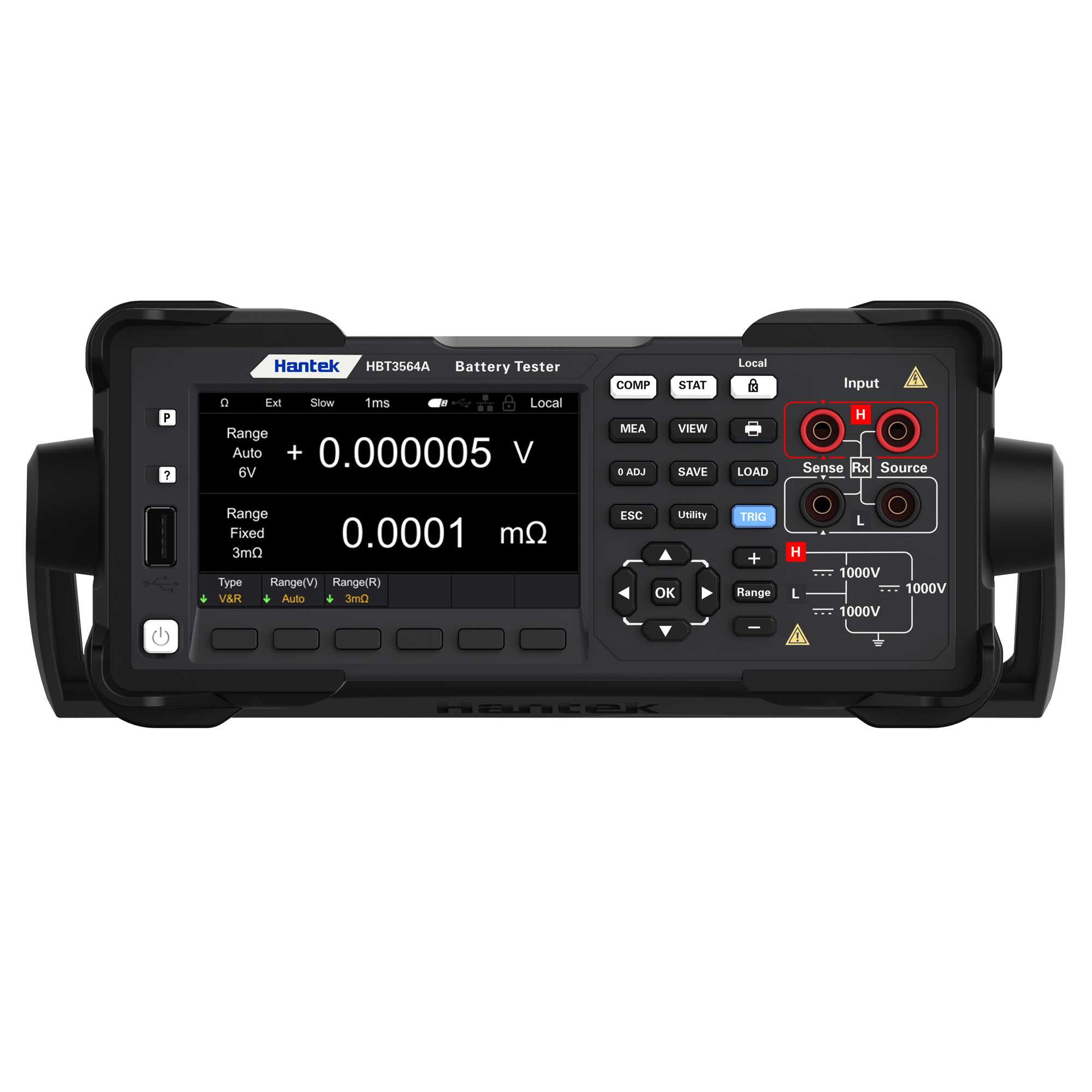

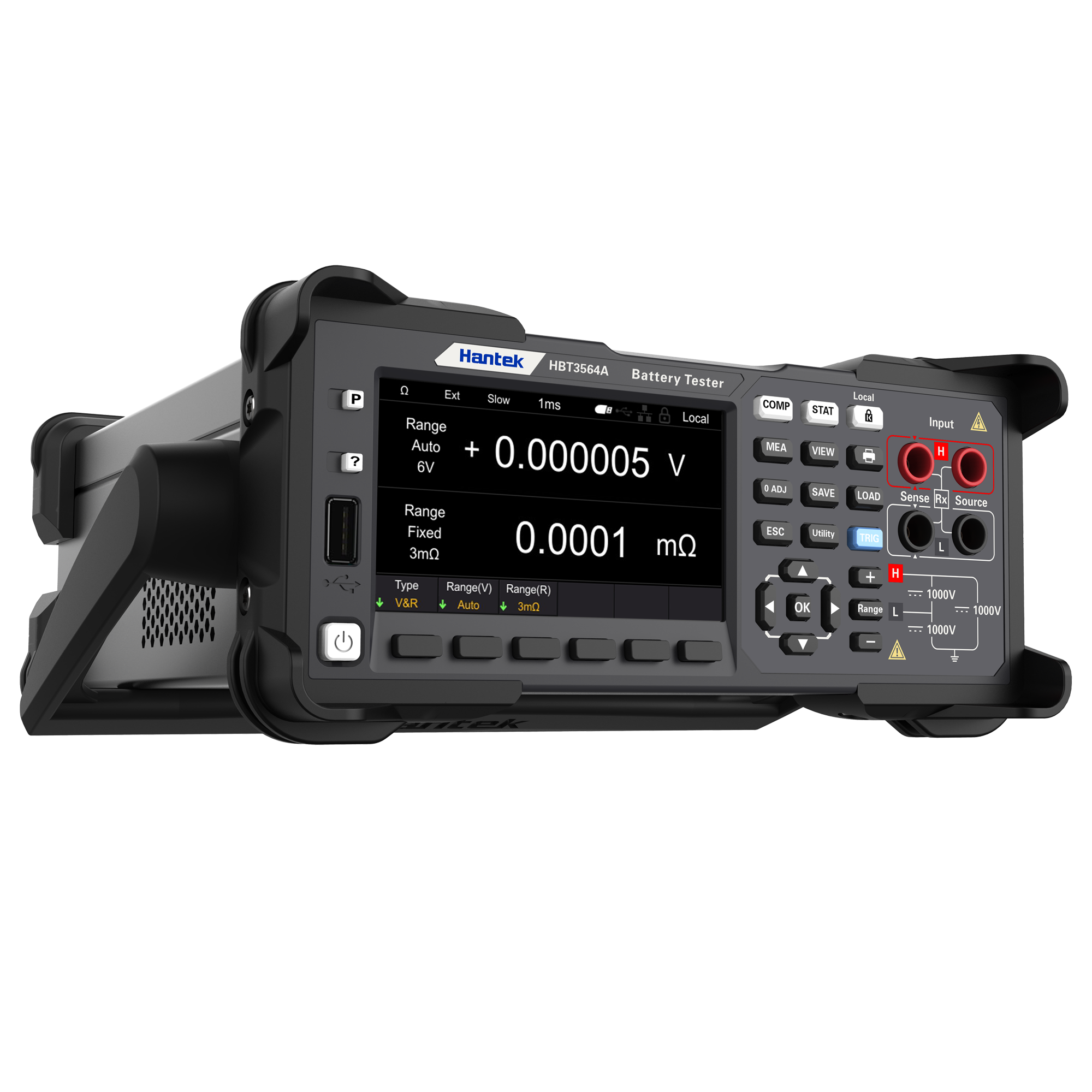

High-voltage BatteryTester HBT3000 Series -

6 1/2-bit reader high-resolution internal resistance tester is a battery internal resistance tester with high accuracy and rapid measurement characteristics, and the measurement voltage range reaches 2000V.
0.1μΩ resistance resolution, 10μV voltage resolution, with high precision, high speed, suitable for various battery types.
Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, suitable for more testing scenarios.
Using the AC 4-terminal method, impedance measurement is not affected by the impedance of the test line.
It has independent comparison functions for resistance and voltage, while displaying the internal resistance and voltage of the battery.
Short -circuit zero adjustment function, remove the bias voltage of the instrument or the error caused by the measurement environment.
Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
Sampling rate: Slow/Horotelic/Fast, with a maximum speed of approximately 40 ms for high-speed measurement.
Internal impedance measurement range: 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.6kΩ.
The full range of voltage measurement covers: 1100V/1600V/2000V.
Draw the normal distribution diagram to observe the normal distribution of the measurement results.
The measurement results are easily saved into the U disk to facilitate subsequent data analysis and processing.

High precision and wide range

6 1/2, the voltage measurement range reaches 2000V, the resistance measurement range is 0 ~ 3.6kΩ, which has a high -precision and rapid measurement characteristics of the battery internal resistance testing instrument. Field meets your needs.

Comparator function

Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.

Save/Load Function

The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.

Three-speed sampling rate

The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.

Correction function

The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.

Statistical function

Calculating a variety of statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., makes it easy to plot the normal distribution and helps you visualize the normal distribution of your measurements.

Rich configuration interfaces

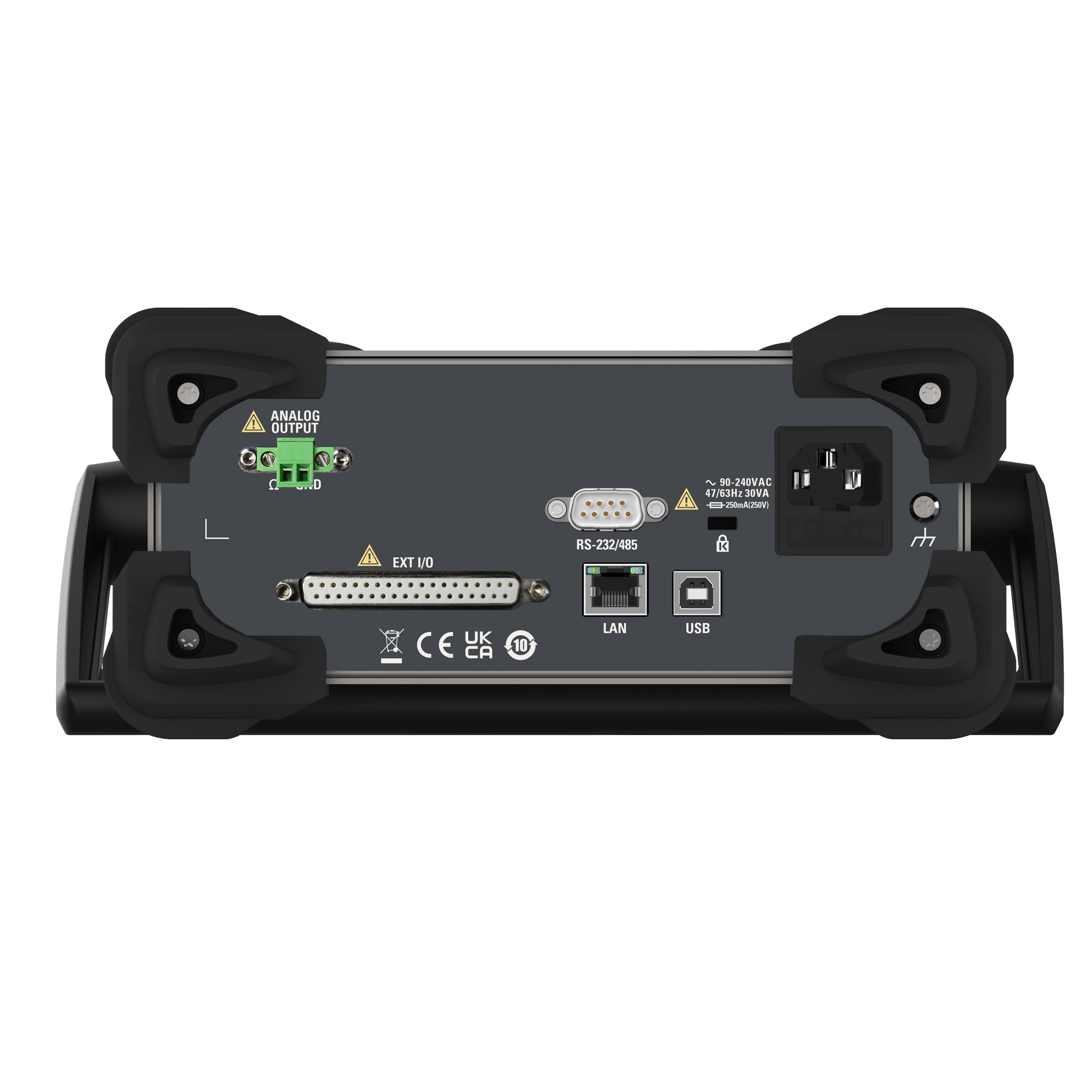

Standard configuration includes RS232/485, LAN, EXT I/O, USB Host, USB Device, and ANALOGOUTPUT interfaces. With rich interfaces, it is a measuring instrument suitable for building battery production inspection circuits.

Model	Resistance Resolution	Resistance Range	Resistance Range	Voltage Resolution	Voltage Range	Voltage Accuracy	Interface
HBT3564A	0.1μΩ	0~3.6kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω）	10μV	0~1100V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT3565A	0.1μΩ	0~3.6kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω）	10μV	0~1600V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT3566A	0.1μΩ	0~3.6kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω）	10μV	0~2000V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT5566A	0.1μΩ	0~3.6kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω）	10μV	0~2000V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT

Model

HBT3561A

HBT3562A

HBT3563A

HBT5563A

HBT3564A

HBT3565A

HBT5566A

HBT3566A

Voltage

Range

110V

210V

360V

1100V

1600V

2000V

Measurement

Max. Display

121V

231V

396V

1210V

1760V

2200V

Resolution

1 μV

10 μV

Accuracy

±0.01% rdg ±3 dgt

ResistanceMeasurement

Range

Max. Display

Resolution

Measurement Current

Accuracy

3 mΩ

30 mΩ or more

3 mΩ

3.6 mΩ

0.1 μΩ

100 mA

±0.5% rdg ±10 dgt

±0.5% rdg ±5 dgt

30 mΩ

36 mΩ

1 μΩ

100 mA

300 mΩ

360 mΩ

10 μΩ

10 mA

3 Ω

3.6Ω

100 μΩ

1 mA

30 Ω

36Ω

1mΩ

100 μA

300 Ω

360 Ω

10 mΩ

10 μA

3600Ω

3610Ω

100 mΩ

10 μA

Measurement Method

AC four-terminal method

Measurement Frequency

1 kHz

Response Time

5 ms approx.

Open Terminal Voltage

12 V peak

15 V peak

Sampling Period

Meas.

Fast

Medium

Slow

(Frequency: 50 Hz/60 Hz)

Speed

ΩV

60 ms

300 ms

600 ms

Ω or V

40 ms

200 ms

400 ms

Allowable Total Line Res.(error detection)

Range

3 mΩ

30 mΩ

300 mΩ

3 Ω

Sense Line

3 Ω

20Ω

Source Line

3 Ω

20Ω

200Ω

Function

Zero Adjustment

Yes

Meas. Current Pulse Output

Pulse, Continuous

Statistical Calculations

Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)

Delay Time

On/Off,1 ms to 9999 ms

Average

1, 2, 4, 8 times

Save/Load

Up to 1000

Trigger

Internal, External, Manual

Interface

Standard

RS232/485, USB, LAN, I/O, Analog Output

Optional

GPIB (HBT4000H series models only)

Display

4.3 inch LCD

AC Input

110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz

Dimension(WxHxD)

Low voltage: 208.5mm*84.5mm*264mm

High voltage: 208.5mm*84.5mm*344mm

Model

HBT3561A

HBT3562A

HBT3563A

HBT5563A

HBT3564A

HBT3565A

HBT5566A

HBT3566A

Voltage

Range

110V

210V

360V

1100V

1600V

2000V

Measurement

Max. Display

121V

231V

396V

1210V

1760V

2200V

Resolution

1 μV

10 μV

Accuracy

±0.01% rdg ±3 dgt

ResistanceMeasurement

Range

Max. Display

Resolution

Measurement Current

Accuracy

3 mΩ

30 mΩ or more

3 mΩ

3.6 mΩ

0.1 μΩ

100 mA

±0.5% rdg ±10 dgt

±0.5% rdg ±5 dgt

30 mΩ

36 mΩ

1 μΩ

100 mA

300 mΩ

360 mΩ

10 μΩ

10 mA

3 Ω

3.6Ω

100 μΩ

1 mA

30 Ω

36Ω

1mΩ

100 μA

300 Ω

360 Ω

10 mΩ

10 μA

3600Ω

3610Ω

100 mΩ

10 μA

Measurement Method

AC four-terminal method

Measurement Frequency

1 kHz

Response Time

5 ms approx.

Open Terminal Voltage

12 V peak

15 V peak

Sampling Period

Meas.

Fast

Medium

Slow

(Frequency: 50 Hz/60 Hz)

Speed

ΩV

60 ms

300 ms

600 ms

Ω or V

40 ms

200 ms

400 ms

Allowable Total Line Res.(error detection)

Range

3 mΩ

30 mΩ

300 mΩ

3 Ω

Sense Line

3 Ω

20Ω

Source Line

3 Ω

20Ω

200Ω

Function

Zero Adjustment

Yes

Meas. Current Pulse Output

Pulse, Continuous

Statistical Calculations

Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)

Delay Time

On/Off,1 ms to 9999 ms

Average

1, 2, 4, 8 times

Save/Load

Up to 1000

Trigger

Internal, External, Manual

Interface

Standard

RS232/485, USB, LAN, I/O, Analog Output

Optional

GPIB (HBT4000H series models only)

Display

4.3 inch LCD

AC Input

110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz

Dimension(WxHxD)

Low voltage: 208.5mm*84.5mm*264mm

High voltage: 208.5mm*84.5mm*344mm

Standard Accessories

Packing List

Including: calibration certificate, packing form, warranty card and qualification certificate.

Power cable

The instrument comes standard with a national standard power cord where the user is located, which can also be purchased separately.

Square port USB

Square port USB cable is used for instruments and PC communication. Before use, you need to install the KEYSIGHT IO software on the PC side.

CLIP TYPE LEAD HT2107

Tools used to measure internal resistance and voltage of battery.

PIN TYPE LEAD HT2100

Tools used to measure internal resistance and voltage of battery.
