Battery Tester HBT3000 Series
The HBT3000 series 6 1/2 bit high-resolution internal resistance tester is a battery internal resistance tester with high precision and fast measurement characteristics. With a voltage resolution of 1μV and a resistance resolution of 0.1μΩ, it has high precision and speed and is suitable for various battery types. It comes standard with RS232/485, LAN, EXT I/O, USB Host, USB Device, and ANALOGOUTPUT interfaces, suitable for more testing scenarios. It uses AC four terminal testing method to more accurately test battery internal resistance and voltage. The built-in comparator function automatically determines whether battery parameters meet standards. The operation is simple, accurate, fast, stable, and reliable. This battery internal resistance tester will be your best choice.
  • 6 1/2-bit reading high -resolution internal resistance testing test instrument is a battery internal resistance tester with high accuracy and rapid measurement characteristics.
  • 1 μV voltage resolution, 0.1 μΩ resistor resolution, has high precision, high speed, and suitable for various battery types.
  • Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, suitable for more testing scenarios.
  • Using AC 4 -terminal method, the impedance can not be affected by the impedance of the test line during the impedance measurement.
  • It has independent comparison functions for resistance and voltage, while displaying the internal resistance and voltage of the battery.
  • Short -circuit zero adjustment function, remove the bias voltage of the instrument or the error caused by the measurement environment.
  • Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
  • Sampling rate: Fast/Horotelic/Slow, with a maximum speed of approximately 40 ms for high-speed measurement.
  • Internal impedance measurement range: 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.6 kΩ.
  • The full range of voltage measurement covers: 110V/210V/360V.
  • Draw a normal distribution diagram and visually observe the normal distribution of the measurement results.
  • The measurement results can be easily saved to a USB drive, making it convenient for subsequent data analysis and processing.
High precision and wide range
6 1/2, 1 μV voltage resolution, 0.1 μΩ resistor resolution, resistance measurement range of 0 ~ 3.6kΩ, with high -precision, quickly measured characteristic battery internal resistance testing instrument, covered most large battery packs to the button battery battery Test requirements, accurately meet your needs.
Comparator function
Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.
Save/Load Function
The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.
Three sampling rates
The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.
Calibration function
The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.
Statistical function
Calculate various statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., to easily draw a normal distribution map and help you visually observe the normal distribution of measurement results
Rich configuration interfaces

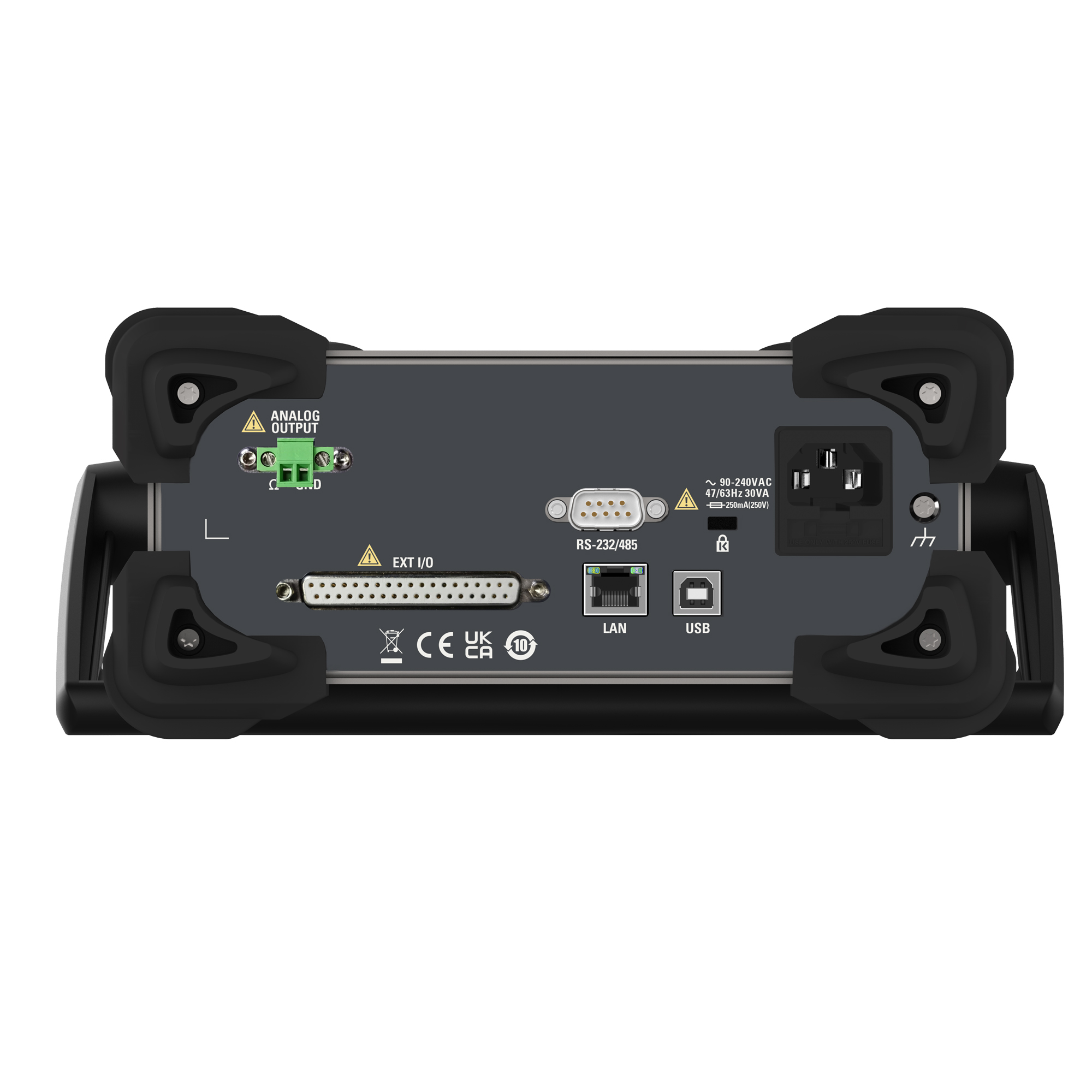

Standard configuration includes RS232/485, LAN, EXT I/O, USB Host, USB Device, and ANALOGOUTPUT interfaces. Rich in interfaces, it is a measuring instrument suitable for building battery production inspection circuits.
Model Resistance Resolution Resistance Range  Resistance Range  Voltage Resolution Voltage Range Voltage Accuracy Interface
HBT3561A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 1μV 0~110V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT
HBT3562A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 1μV 0~210V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT
HBT3563A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 1μV 0~360V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT
HBT5563A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 1μV 0~360V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT

Model HBT3561A HBT3562A HBT3563A HBT5563A HBT3564A HBT3565A HBT5566A HBT3566A
Voltage Range 110V 210V 360V 360V 1100V 1600V 2000V 2000V
Measurement Max. Display 121V 231V 396V 396V 1210V 1760V 2200V 2200V
  Resolution 1 μV 10 μV
  Accuracy ±0.01% rdg ±3 dgt
ResistanceMeasurement Range Max. Display Resolution Measurement Current Accuracy
3 mΩ 30 mΩ or more
3 mΩ 3.6 mΩ 0.1 μΩ 100 mA ±0.5% rdg ±10 dgt ±0.5% rdg ±5 dgt
30 mΩ 36 mΩ 1 μΩ 100 mA
300 mΩ 360 mΩ 10 μΩ 10 mA
3 Ω 3.6Ω 100 μΩ 1 mA
30 Ω 36Ω 1mΩ 100 μA
300 Ω 360 Ω 10 mΩ 10 μA
3600Ω 3610Ω 100 mΩ 10 μA
Measurement Method AC four-terminal method
Measurement Frequency 1 kHz
Response Time 5 ms approx.
Open Terminal Voltage 12 V peak 15 V peak
Sampling Period Meas. Fast Medium Slow
(Frequency: 50 Hz/60 Hz) Speed
  ΩV 60 ms 300 ms 600 ms
  Ω or V 40 ms 200 ms 400 ms
Allowable Total Line Res.(error detection) Range 3 mΩ 30 mΩ 300 mΩ 3 Ω
Sense Line 3 Ω 3 Ω 20Ω 20Ω
Source Line 3 Ω 3 Ω 20Ω 200Ω
Function Zero Adjustment Yes
Meas. Current Pulse Output Pulse, Continuous
Statistical Calculations Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)
Delay Time On/Off,1 ms to 9999 ms
Average 1, 2, 4, 8 times
Save/Load Up to 1000
Trigger Internal, External, Manual
Interface Standard RS232/485, USB, LAN, I/O, Analog Output
Optional GPIB (HBT4000H series models only)
Display 4.3 inch LCD
AC Input 110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz
Dimension(WxHxD) Low voltage: 208.5mm*84.5mm*264mm
High voltage: 208.5mm*84.5mm*344mm

Model HBT3561A HBT3562A HBT3563A HBT5563A HBT3564A HBT3565A HBT5566A HBT3566A
Voltage Range 110V 210V 360V 360V 1100V 1600V 2000V 2000V
Measurement Max. Display 121V 231V 396V 396V 1210V 1760V 2200V 2200V
  Resolution 1 μV 10 μV
  Accuracy ±0.01% rdg ±3 dgt
ResistanceMeasurement Range Max. Display Resolution Measurement Current Accuracy
3 mΩ 30 mΩ or more
3 mΩ 3.6 mΩ 0.1 μΩ 100 mA ±0.5% rdg ±10 dgt ±0.5% rdg ±5 dgt
30 mΩ 36 mΩ 1 μΩ 100 mA
300 mΩ 360 mΩ 10 μΩ 10 mA
3 Ω 3.6Ω 100 μΩ 1 mA
30 Ω 36Ω 1mΩ 100 μA
300 Ω 360 Ω 10 mΩ 10 μA
3600Ω 3610Ω 100 mΩ 10 μA
Measurement Method AC four-terminal method
Measurement Frequency 1 kHz
Response Time 5 ms approx.
Open Terminal Voltage 12 V peak 15 V peak
Sampling Period Meas. Fast Medium Slow
(Frequency: 50 Hz/60 Hz) Speed
  ΩV 60 ms 300 ms 600 ms
  Ω or V 40 ms 200 ms 400 ms
Allowable Total Line Res.(error detection) Range 3 mΩ 30 mΩ 300 mΩ 3 Ω
Sense Line 3 Ω 3 Ω 20Ω 20Ω
Source Line 3 Ω 3 Ω 20Ω 200Ω
Function Zero Adjustment Yes
Meas. Current Pulse Output Pulse, Continuous
Statistical Calculations Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)
Delay Time On/Off,1 ms to 9999 ms
Average 1, 2, 4, 8 times
Save/Load Up to 1000
Trigger Internal, External, Manual
Interface Standard RS232/485, USB, LAN, I/O, Analog Output
Optional GPIB (HBT4000H series models only)
Display 4.3 inch LCD
AC Input 110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz
Dimension(WxHxD) Low voltage: 208.5mm*84.5mm*264mm
High voltage: 208.5mm*84.5mm*344mm

Standard Accessories
Power cable
The instrument comes standard with a national standard power cord where the user is located, which can also be purchased separately.
Square port USB
Square port USB cable is used for instruments and PC communication. Before use, you need to install the KEYSIGHT IO software on the PC side.
Packing List
Including: calibration certificate, packing form, warranty card and qualification certificate.
CLIP TYPE LEAD HT2107
Tools used to measure internal resistance and voltage of battery.
Optional Accessories
PIN TYPE LEAD HT2100
Tools used to measure internal resistance and voltage of battery.
