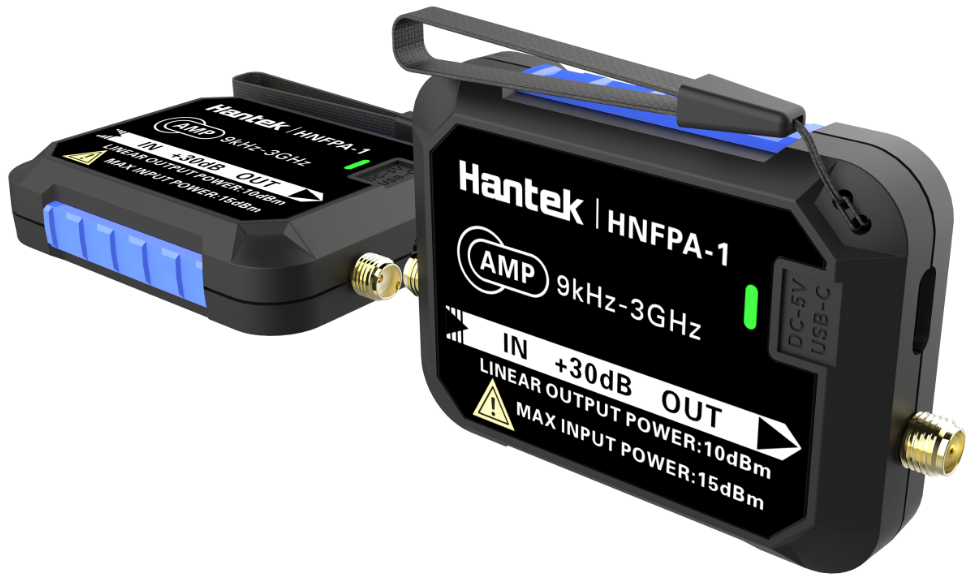

RF Amplifier (9KHz-3GHz)

HNFPA-1 preamplifier with our HNFP series of near-field probes, mainly for the test of the weak signal amplification, the frequency range of 9kHz-3GHz; HNFPA-1 gain of about 30dB, can greatly improve the sensitivity of the system test. Standard with USB adapter and USB boost power adapter cable, you can directly through the spectrum analyser or receiver comes with the USB interface power supply, more convenient to use. With the company's HNFP series of near-field probe can quickly and accurately determine the source of electromagnetic interference, to avoid blind changes in EMI design, can significantly improve product development efficiency and reduce development costs.

Overview
Parameters
Accessories
Download
Probe
Video

Frequency range 9kHz - 3GHz
Typical gain approx. 30dB
Maximum input power 15dBm

Model	HNFPA-1
Frequency Range	9KHz-3GHz
Typical Gain	30dB
Flatness	±1.5dB
Amplitude-frequency Curve	Figure below
Maximum Linear Output Power	10dBm
Typical noise figure @2GHz	4dB
Maximum Input Power	15dBm
Operating Voltage	DC12V
Input-Output interface	SMA (Female) Note: If this product is used with our Field Probes,customer need to prepare SMA(male) to SMA(male) RF cables for testing.
Dimension	Approx. 664816mm

APPLICATIONS

EMI source location test systems

Small Signal Amplification

Model	HNFPA-1
Frequency Range	9KHz-3GHz
Typical Gain	30dB
Flatness	±1.5dB
Amplitude-frequency Curve	Figure below
Maximum Linear Output Power	10dBm
Typical noise figure @2GHz	4dB
Maximum Input Power	15dBm
Operating Voltage	DC12V
Input-Output interface	SMA (Female)
Dimension	Approx. 664816mm

Standard Accessories

Power Adapter

Power Adapter*1, Type-C Charging Cable*1

Adaptor

SMA(Male) to N Connector*2
