Feature

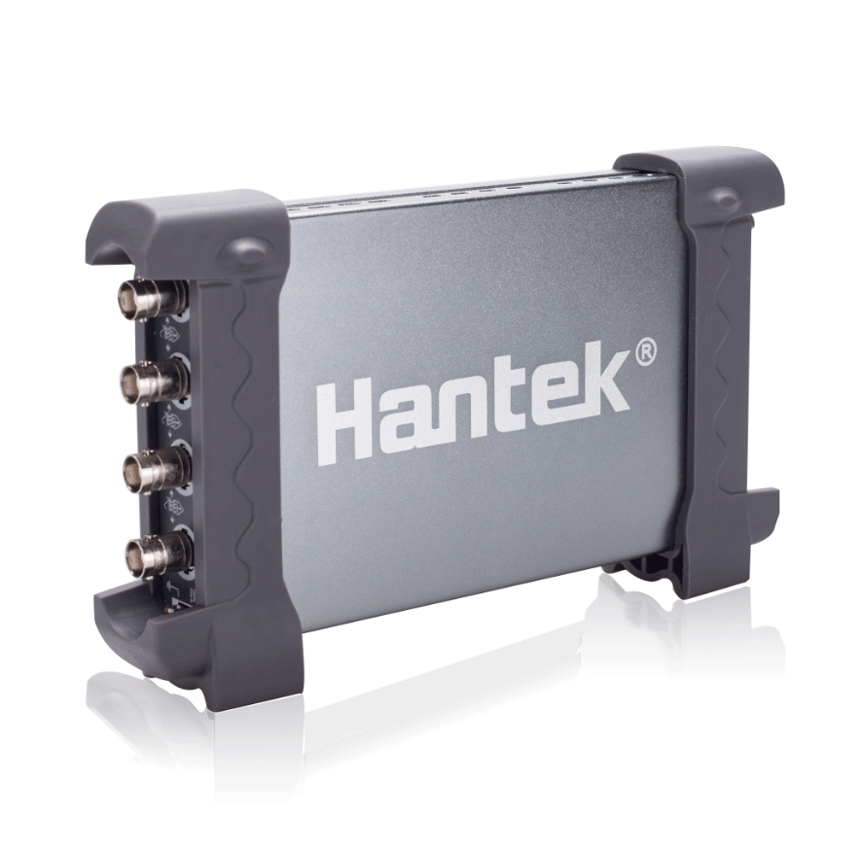

• The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.
• Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.
• USB2.0 Interface, plug and play device.
• Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
• Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
• Software support: Windows10, Windows 8, Windows 7
• The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
• More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
• Serial bus triggering and decode,  Bus protocol information can be quickly and intuitively displayed in table form.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• FFT spectrum analyzer
• One computer could connect with multiple oscilloscopes, expand the channel number easily.
• Provide secondary development library DLL; Provide Labview\VB\VC developing examples.
