Feature
Oscilloscope
Logic Analyzer
Arb. Waveform Generator
|
|
|
|
|
|
|
|
|
|
 |
|
| Model |

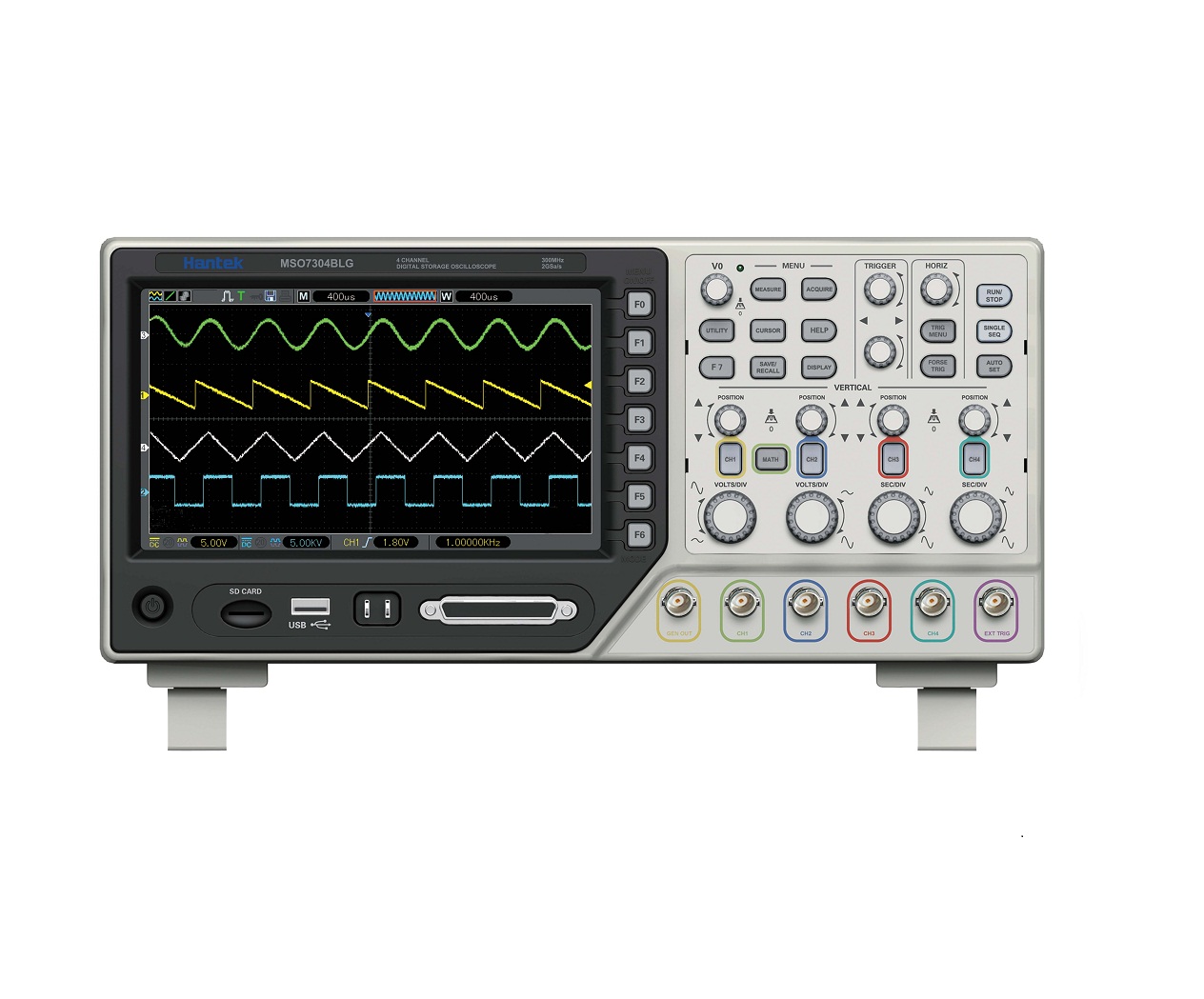

MSO7302BLG MSO7304BLG |
MSO7202BLG MSO7204BLG |
MSO7102BLG MSO7104BLG |
MSO7082BLG MSO7084BLG |
| Bandwidth | 300MHz | 200MHz | 100MHz | 80MHz |
| Real Sample Rate | 2GSa/s | |||
| Memory Depth | 32K | |||
| Timebase Range（s/div） | 2ns/div-40s/div | 4ns/div-40s/div | ||
| Delay time Accuracy | 500ps | |||
| Vertical System | ||||
| Vertical Resolution | 8bit | |||
| Volts/div Range | 2mV/div～5V/div | |||
| Position Range |
±50V(5V/div),±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div)±400mV(20mV/div～2mV/div) |
|||
| Rise Time | ≤1.2ns | ≤1.8ns | ≤3.5ns | ≤4.4ns |
| DC Gain Accuracy |
±3%
for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div |
|||
| Trigger System | ||||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | |||
| Trigger Source | CH1, CH2, EXT, EXT/5, AC Line | |||
| Trigger Modes | Auto, Normal, Single | |||
|
Trigger Sensitivity (Edge Trigger Type) |
DC(CH1,CH2,CH3,CH4):
1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to
Full; AC: Attenuates signals below 10Hz ; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz |
|||
| Trigger Level Range |
CH1,
CH2,(CH3, CH4): ±8 divisions from center of screen; EXT: ±1.2V; EXT/5:±6V |
|||
| Trigger Level Accuracy |
CH1,
CH2,(CH3, CH4): 0.2div × volts/div within ±4 divisions from center of
screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV); |
|||
| Holdoff Range | 100ns-10s | |||
| Measurement | ||||
| Cousor Measurement |
Manual:
Voltage difference between cursors: △V Time difference between cursors: △T Reciprocal of △T in Hertz (1/ΔT); Tracing: The valtage and time at a waveform point; |
|||
| Auto Measurement | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF | |||
| Math | +, -, *, /, FFT | |||
| Logic Analyzer | ||||
| Channels | 8 Channel | |||
| Max. Input Impendence | 200K(C=10p) | |||
| Input Voltage Range | 0~3V | |||
| Logic Threshold Range | 0~3V | |||
| Max. Sample Rate | 1GSa/s | |||
| Compatible Input | TTL, CMOS, ECL | |||
| Sample Depth | 32K | |||
| Arb. Waveform Generator | ||||
| Wave frequency | DC~25MHz | |||
| DAC clock | 2K~200MHz adjustable | |||
| Frequency Accury | 0.10% | |||
| Waveform Length | 4KSa | |||
| Vertical Resolution | 12Bit | |||
| Frequency stabilization | <30ppm | |||
| Amplitude | ±3.5V Max. | |||
| Output impedance | 50 Ω | |||
| Output current | 50mA Ipeak=50mA | |||
| System Bandwidth | 25M | |||
| Wave distortion | -50dBc(1KHz), -40dBc(10KHz) | |||
| Frequency area | DC~50MHz | |||
| Input Amplitude | 400mVpp~18Vpp | |||
| Coupling | DC | |||
| Frequency precision | ±Time Base Error ±1 Count | |||
| input impedance | > 100KΩ | |||
| Pattern Generator | 12Bit | |||
| General Feature | ||||
| Display | 7 inch 64K color TFT LCD,(WBGA 800*480) | |||
| Supply Voltage |
100-120VACRMS(±10%)，45Hz~440Hz，CATⅡ; 120-240VACRMS(±10%)，45Hz~66Hz，CATⅡ |
|||
| Power Consumption | <30W | |||
| Fuse | 2A, T rating, 250V | |||
| Demension & Weight | 313mmx108mmx142mm; 2.5KG | |||
|
|
|
|
|
|
|
|
