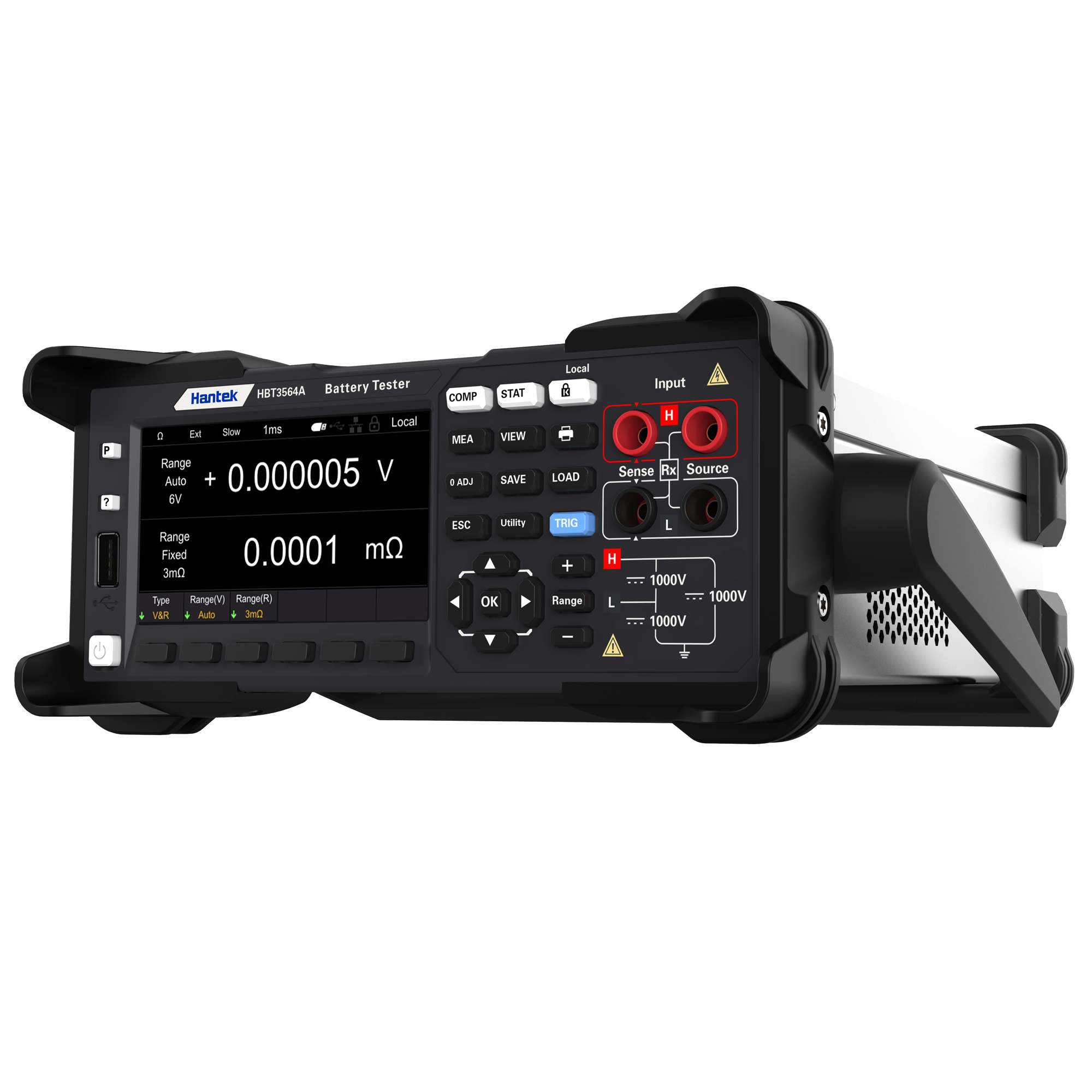

High-voltage BatteryTester HBT3000 Series


The HBT3000 series 6 1/2 bit high-resolution internal resistance tester is a battery internal resistance tester with high precision and fast measurement characteristics, with a measurement voltage range of up to 2000V. Using the AC four terminal testing method to more accurately test the internal resistance and voltage of the battery; 0.1μΩ Resistance resolution, 10μV voltage resolution, with high precision, high speed, suitable for various battery types; Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, suitable for more testing scenarios; Built in comparator function to automatically determine whether battery parameters meet standards; Easy to operate, precise and fast, stable and reliable, this battery internal resistance tester will be your best choice.
  • Overview
  • Parameters
  • Comparison
  • Accessories
  • Download
  • Probe
  • 6 1/2-bit reader high-resolution internal resistance tester is a battery internal resistance tester with high accuracy and rapid measurement characteristics, and the measurement voltage range reaches 2000V.
  • 0.1μΩ resistance resolution, 10μV voltage resolution, with high precision, high speed, suitable for various battery types.
  • Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, suitable for more testing scenarios.
  • Using the AC 4-terminal method, impedance measurement is not affected by the impedance of the test line.
  • It has independent comparison functions for resistance and voltage, while displaying the internal resistance and voltage of the battery.
  • Short -circuit zero adjustment function, remove the bias voltage of the instrument or the error caused by the measurement environment.
  • Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
  • Sampling rate: Slow/Horotelic/Fast, with a maximum speed of approximately 40 ms for high-speed measurement.
  • Internal impedance measurement range: 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.6kΩ.
  • The full range of voltage measurement covers: 1100V/1600V/2000V.
  • Draw the normal distribution diagram to observe the normal distribution of the measurement results.
  • The measurement results are easily saved into the U disk to facilitate subsequent data analysis and processing.

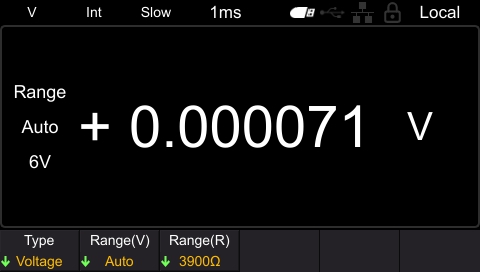

High precision and wide range
6 1/2, the voltage measurement range reaches 2000V, the resistance measurement range is 0 ~ 3.6kΩ, which has a high -precision and rapid measurement characteristics of the battery internal resistance testing instrument. Field meets your needs.
Comparator function
Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.

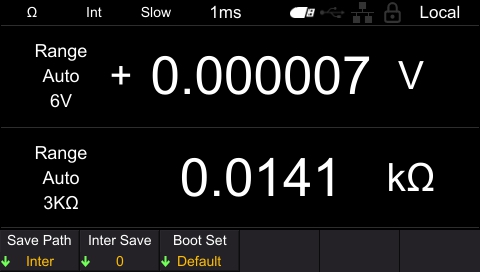

Save/Load Function
The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.

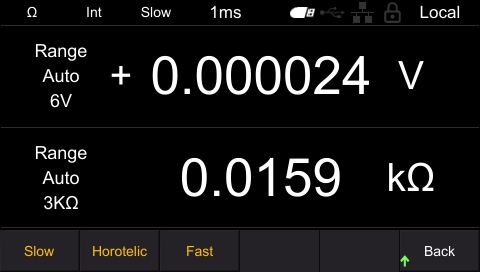

Three-speed sampling rate
The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.

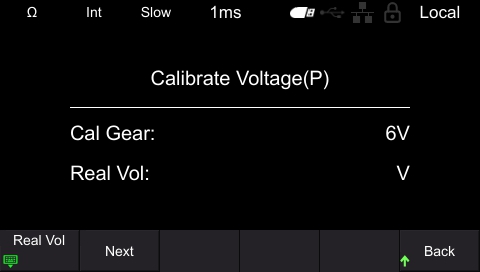

Correction function
The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.

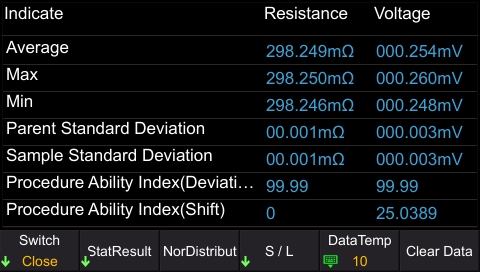

Statistical function
Calculating a variety of statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., makes it easy to plot the normal distribution and helps you visualize the normal distribution of your measurements.
Rich configuration interfaces

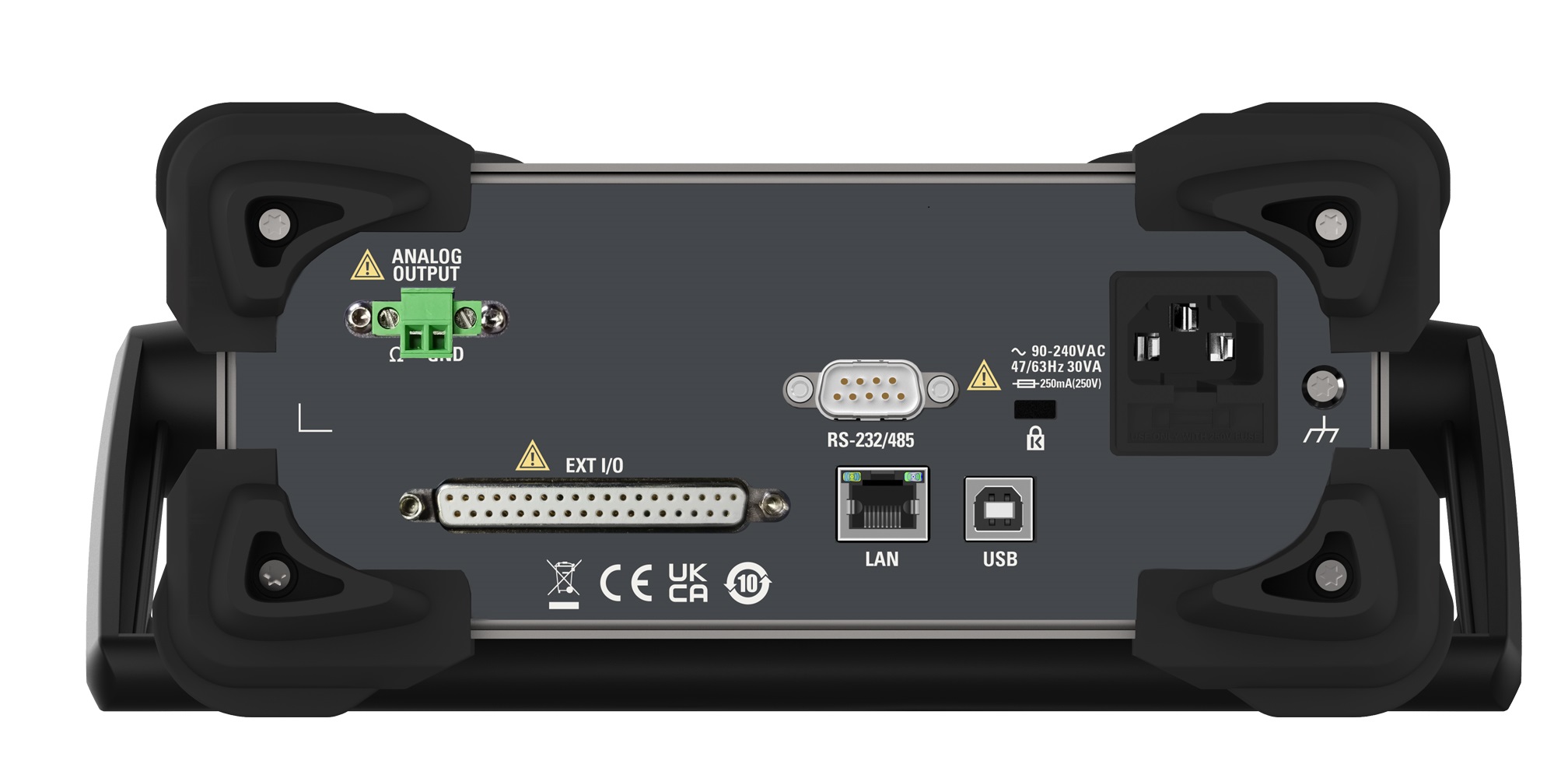

Standard configuration includes RS232/485, LAN, EXT I/O, USB Host, USB Device, and ANALOGOUTPUT interfaces. With rich interfaces, it is a measuring instrument suitable for building battery production inspection circuits.
Model Resistance Resolution Resistance Range  Resistance Range  Voltage Resolution Voltage Range Voltage Accuracy Interface
HBT3564A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 10μV 0~1100V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT
HBT3565A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 10μV 0~1600V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT
HBT3566A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 10μV 0~2000V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT
HBT5566A 0.1μΩ 0~3.6kΩ 士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω） 10μV 0~2000V 士0.01%rdg土3dgt RS232/485 USB LAN IO ANALOGOUTFUT

Model HBT3561A HBT3562A HBT3563A HBT5563A HBT3564A HBT3565A HBT5566A HBT3566A
Voltage Range 110V 210V 360V 360V 1100V 1600V 2000V 2000V
Measurement Max. Display 121V 231V 396V 396V 1210V 1760V 2200V 2200V
  Resolution 1 μV 10 μV
  Accuracy ±0.01% rdg ±3 dgt
ResistanceMeasurement Range Max. Display Resolution Measurement Current Accuracy
3 mΩ 30 mΩ or more
3 mΩ 3.6 mΩ 0.1 μΩ 100 mA ±0.5% rdg ±10 dgt ±0.5% rdg ±5 dgt
30 mΩ 36 mΩ 1 μΩ 100 mA
300 mΩ 360 mΩ 10 μΩ 10 mA
3 Ω 3.6Ω 100 μΩ 1 mA
30 Ω 36Ω 1mΩ 100 μA
300 Ω 360 Ω 10 mΩ 10 μA
3600Ω 3610Ω 100 mΩ 10 μA
Measurement Method AC four-terminal method
Measurement Frequency 1 kHz
Response Time 5 ms approx.
Open Terminal Voltage 12 V peak 15 V peak
Sampling Period Meas. Fast Medium Slow
(Frequency: 50 Hz/60 Hz) Speed
  ΩV 60 ms 300 ms 600 ms
  Ω or V 40 ms 200 ms 400 ms
Allowable Total Line Res.(error detection) Range 3 mΩ 30 mΩ 300 mΩ 3 Ω
Sense Line 3 Ω 3 Ω 20Ω 20Ω
Source Line 3 Ω 3 Ω 20Ω 200Ω
Function Zero Adjustment Yes
Meas. Current Pulse Output Pulse, Continuous
Statistical Calculations Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)
Delay Time On/Off,1 ms to 9999 ms
Average 1, 2, 4, 8 times
Save/Load Up to 1000
Trigger Internal, External, Manual
Interface Standard RS232/485, USB, LAN, I/O, Analog Output
Optional GPIB (HBT4000H series models only)
Display 4.3 inch LCD
AC Input 110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz
Dimension(WxHxD) Low voltage: 208.5mm*84.5mm*264mm
High voltage: 208.5mm*84.5mm*344mm

Model HBT3561A HBT3562A HBT3563A HBT5563A HBT3564A HBT3565A HBT5566A HBT3566A
Voltage Range 110V 210V 360V 360V 1100V 1600V 2000V 2000V
Measurement Max. Display 121V 231V 396V 396V 1210V 1760V 2200V 2200V
  Resolution 1 μV 10 μV
  Accuracy ±0.01% rdg ±3 dgt
ResistanceMeasurement Range Max. Display Resolution Measurement Current Accuracy
3 mΩ 30 mΩ or more
3 mΩ 3.6 mΩ 0.1 μΩ 100 mA ±0.5% rdg ±10 dgt ±0.5% rdg ±5 dgt
30 mΩ 36 mΩ 1 μΩ 100 mA
300 mΩ 360 mΩ 10 μΩ 10 mA
3 Ω 3.6Ω 100 μΩ 1 mA
30 Ω 36Ω 1mΩ 100 μA
300 Ω 360 Ω 10 mΩ 10 μA
3600Ω 3610Ω 100 mΩ 10 μA
Measurement Method AC four-terminal method
Measurement Frequency 1 kHz
Response Time 5 ms approx.
Open Terminal Voltage 12 V peak 15 V peak
Sampling Period Meas. Fast Medium Slow
(Frequency: 50 Hz/60 Hz) Speed
  ΩV 60 ms 300 ms 600 ms
  Ω or V 40 ms 200 ms 400 ms
Allowable Total Line Res.(error detection) Range 3 mΩ 30 mΩ 300 mΩ 3 Ω
Sense Line 3 Ω 3 Ω 20Ω 20Ω
Source Line 3 Ω 3 Ω 20Ω 200Ω
Function Zero Adjustment Yes
Meas. Current Pulse Output Pulse, Continuous
Statistical Calculations Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)
Delay Time On/Off,1 ms to 9999 ms
Average 1, 2, 4, 8 times
Save/Load Up to 1000
Trigger Internal, External, Manual
Interface Standard RS232/485, USB, LAN, I/O, Analog Output
Optional GPIB (HBT4000H series models only)
Display 4.3 inch LCD
AC Input 110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz
Dimension(WxHxD) Low voltage: 208.5mm*84.5mm*264mm
High voltage: 208.5mm*84.5mm*344mm

Standard Accessories
Packing List
Including: calibration certificate, packing form, warranty card and qualification certificate.
Power cable
The instrument comes standard with a national standard power cord where the user is located, which can also be purchased separately.

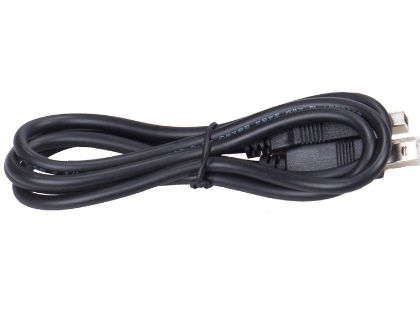

Square port USB
Square port USB cable is used for instruments and PC communication. Before use, you need to install the KEYSIGHT IO software on the PC side.

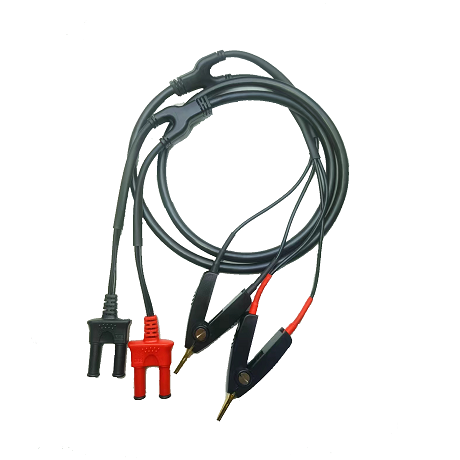

CLIP TYPE LEAD HT2107
Tools used to measure internal resistance and voltage of battery.

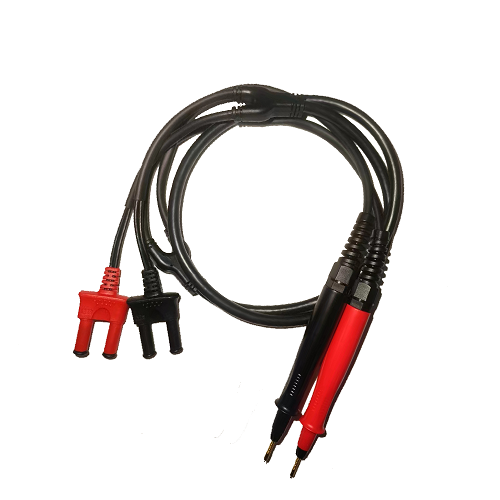

PIN TYPE LEAD HT2100
Tools used to measure internal resistance and voltage of battery.
